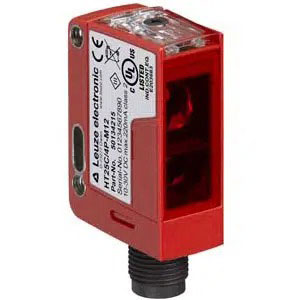

Leuze HT25C/4P-M12 50134215 Diffuse Sensor with Background Suppression
The HT25C/4P-M12 is a high-precision Diffuse Sensor with Background Suppression (Part No. 50134215) by Leuze, featuring selective background suppression, fast switching response, and M12 industrial interface. The Leuze Diffuse Sensor series ensures accurate object detection while ignoring background surfaces, supporting seamless integration into automated production systems.
| Brand | Leuze |
| Product | Diffuse Sensor with Background Suppression |
| Model Number | HT25C/4P-M12 |
Leuze HT25C/4P-M12 50134215 Diffuse Sensor with Background Suppression - Technical Specifications
| Specification | Value |
|---|---|
| Design | Cubic |
| Operating principle | Diffuse reflection principle with background suppression |
| Thread Size | M12 |
| Operating Range | Guaranteed operating range |
| Wavelength | 640 nm |
| Light Source | LED, Red |
| Supply Voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 20 mA |
| Digital Switching Outputs | 2 Piece(s) |
| Switching Frequency | 1,000 Hz |
| Connection Type | Connector |
| No. of Pin | 4 -pin |
| Housing Material | Plastic |
| Plastic housing | ABS |
| Operating Temperature | -40 ... 60 °C |
| Ambient Temperature, Storage | -40 ... 70 °C |
| Degree of Protection (IP Rating) | IP 67, IP 69K |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Net weight | 22 g |
| Type of display | LED |
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
| Response time | 0.5 ms |
| Material | PUR |
| Type | Digital switching output |
The HT25C/4P-M12 (Part No. 50134215) works using diffuse reflection with background suppression, emitting a light beam and detecting objects within a defined sensing range while ignoring distant or reflective backgrounds. Optical signals are converted into electrical outputs, providing precise detection for both moving and stationary components in high-speed industrial processes.
In industrial applications, the HT25C/4P-M12 (Part No. 50134215) is employed for part presence monitoring, position verification, and quality control. It is commonly implemented in conveyor systems, automated assembly lines, and packaging operations, where reliable detection without background interference ensures consistent product quality and efficient workflows.
Engineered for demanding industrial environments, the HT25C/4P-M12 (Part No. 50134215) features rugged housing, resistance to dust and ambient light interference, and stable operation across temperature fluctuations. Its durable construction guarantees long-term reliability in continuous production and harsh factory conditions.
