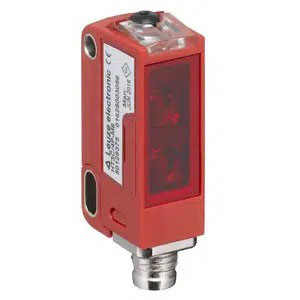

Leuze HT3CL2/6G-M8 50137051 Diffuse Sensor with Background Suppression
The HT3CL2/6G-M8 is a high-precision Diffuse Sensor with Background Suppression (Part No. 50137051) by Leuze, featuring enhanced sensing range, fast switching response, and compact M8 housing. The Leuze Diffuse Sensor series ensures accurate object detection while ignoring background surfaces, enabling seamless integration into automated production and assembly systems.
| Brand | Leuze |
| Product | Diffuse Sensor with Background Suppression |
| Model Number | HT3CL2/6G-M8 |
Leuze HT3CL2/6G-M8 50137051 Diffuse Sensor with Background Suppression - Technical Specifications
| Specification | Value |
|---|---|
| Operating principle | Diffuse reflection principle with background suppression |
| Beam path | Collimated |
| Thread Size | M8 |
| Operating Range | Guaranteed operating range |
| Adjustment range | 20 ... 550 mm |
| Wavelength | 650 nm |
| Light Source | Laser, Red |
| Supply Voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 20 mA |
| Digital Switching Outputs | 2 Piece(s) |
| Switching Frequency | 3,000 Hz |
| Connection Type | Connector |
| No. of Pin | 4 -pin |
| Housing Material | Plastic |
| Plastic housing | PC-ABS |
| Operating Temperature | -40 ... 60 °C |
| Ambient Temperature, Storage | -40 ... 70 °C |
| Degree of Protection (IP Rating) | IP 67, IP 69K |
| Dimension (W x H x L) | 11.4 mm x 34.2 mm x 18.3 mm |
| Net weight | 10 g |
| Type of display | LED |
| Switching element | Transistor, Push-pull |
| Switching principle | Light switching (PNP)/dark switching (NPN) |
| Response time | 0.16 ms |
| Material | Metal |
| Type | Digital switching output |
The HT3CL2/6G-M8 (Part No. 50137051) operates using diffuse reflection with background suppression, emitting a light beam and detecting objects within a defined range while filtering out distant or reflective surfaces. Optical signals are converted into electrical outputs, providing precise detection for both moving and stationary components in high-speed industrial operations.
Industrially, the HT3CL2/6G-M8 (Part No. 50137051) is used for part presence monitoring, position verification, and quality control. Applications include conveyor systems, automated assembly lines, and packaging operations, where accurate detection without background interference ensures consistent product quality and operational efficiency.
Designed for demanding environments, the HT3CL2/6G-M8 (Part No. 50137051) features robust housing, resistance to dust and ambient light, and stable performance across temperature variations. Its durable construction ensures long-term reliability in continuous production and harsh factory conditions.
