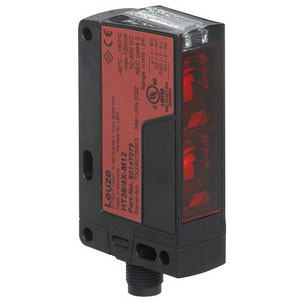

Leuze HT36/4X-M12 50147079 Diffuse Sensor with Background Suppression
The HT36/4X-M12 is a high-precision Diffuse Sensor with Background Suppression (Part No. 50147079) by Leuze, featuring extended detection range, fast switching response, and M12 industrial interface. The Leuze Diffuse Sensor series ensures precise object detection while ignoring background surfaces, supporting seamless integration into automated production systems and assembly lines.
| Brand | Leuze |
| Product | Diffuse Sensor with Background Suppression |
| Model Number | HT36/4X-M12 |
Leuze HT36/4X-M12 50147079 Diffuse Sensor with Background Suppression - Technical Specifications
| Specification | Value |
|---|---|
| Operating principle | Diffuse reflection principle with background suppression |
| Beam path | Focused |
| Thread Size | M12 |
| Operating Range | Guaranteed operating range |
| Adjustment range | 150 ... 2,500 mm |
| Wavelength | 645 nm |
| Light Source | LED, Red |
| Supply Voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Open-circuit current | 0 ... 30 mA |
| Digital Switching Outputs | 1 Piece(s) |
| Switching Frequency | 250 Hz |
| Connection Type | Connector |
| No. of Pin | 4 -pin |
| Housing Material | Plastic |
| Plastic housing | PC-PBT |
| Operating Temperature | -40 ... 60 °C |
| Ambient Temperature, Storage | -40 ... 70 °C |
| Degree of Protection (IP Rating) | IP 67 |
| Dimension (W x H x L) | 20.5 mm x 76.3 mm x 44 mm |
| Net weight | 60 g |
| Type of display | LED |
| Switching element | Transistor, PNP |
| Switching principle | Light switching |
| Response time | 2 ms |
| Material | Plastic |
| Type | Digital switching output |
The HT36/4X-M12 (Part No. 50147079) operates using diffuse reflection with background suppression, emitting a light beam and detecting objects within a specified range while filtering out distant or reflective surfaces. The sensor converts optical signals into electrical outputs, providing precise detection for both moving and stationary components in high-speed industrial processes.
In industrial applications, the HT36/4X-M12 (Part No. 50147079) is used for part presence monitoring, position verification, and quality control. Typical implementations include conveyor systems, automated assembly lines, and packaging operations, where accurate detection without background interference ensures consistent product quality and operational efficiency.
Engineered for demanding industrial environments, the HT36/4X-M12 (Part No. 50147079) features robust housing, resistance to dust and ambient light interference, and stable operation across temperature variations. Its durable design guarantees long-term reliable performance in continuous production and harsh factory conditions.
