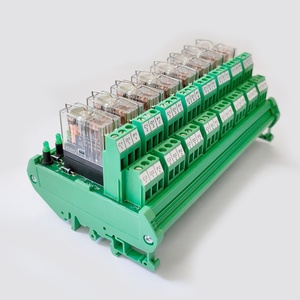

Agility AE-16-012D-2-B-C 16 Channel 12V Relay Module

Agility AE-16-012D-2-B-C provides sixteen independently operated relay channels for automation systems using a 12 VDC control supply. Each channel incorporates an Omron G2R Series electromechanical relay with two changeover (DPDT) contact sets, allowing paired switching functions from one coil command. The contacts are specified at 5 A for 250 VAC or 30 VDC under applicable load conditions. Freewheeling diodes help suppress coil turn-off transients, while DIN rail or panel mounting supports installation in control cabinets. This 16 Channel 12V Relay Module is relevant to machines requiring multiple discrete output interfaces. Agility relay board options include other coil-voltage and contact configurations.

BrandAgility
ProductRelay Board
Model NumberAE-16-012D-2-B-C

Agility AE-16-012D-2-B-C Relay Board – Technical Overview

SpecificationValue
Relay TypeElectromechanical Relay
Relay Contact TypeTwo Change Over (DPDT)
Relay MakeOmron G2R Series (Other make available on request)
Coil Voltage12 VDC
Number of Channels16 Channel Relay Module
Contact Rating5A at 30VDC/250VAC
Input InterfacePLC / Control signal compatible
Mounting TypeDIN Rail / Panel Mount
Relay Coil ProtectionFreewheeling Diode
IsolationElectrical isolation between control circuit and load circuit
ApplicationPLC interface, automation control panels, machine control systems

The Agility AE-16-012D-2-B-C relay board provides sixteen independent switching channels for machine control systems requiring multiple relay-operated outputs. Each channel uses an Omron G2R Series relay with two changeover (DPDT) contact sets. Both contact sets operate together when their associated 12 VDC coil is energized. This arrangement allows one control command to switch a field circuit and an associated auxiliary indication without requiring separate relay coils. The board therefore provides sixteen independently controlled channels and thirty-two mechanically linked contact poles.

The 12 VDC coil supply must be matched to the controller output or an appropriately rated interface driver. Each contact is specified at 5 A for 250 VAC or 30 VDC, subject to the connected load and switching conditions. Freewheeling diodes help suppress inductive voltage spikes during coil de-energization. Where a machine uses a 24 VDC control supply, the AE-16-024D-2-B-C provides sixteen DPDT channels with a different coil-voltage requirement.

The 16 Channel 12V Relay Module can organize numerous discrete control functions within a PLC cabinet or process automation panel. With sixteen relay positions, terminal identification, wire routing, and access for maintenance become important installation considerations. The board is listed for DIN rail or panel mounting. Applications requiring eight 12 VDC DPDT channels can use the AE-08-012D-2-B-C as a related configuration. When multiple channels energize simultaneously, the control supply must accommodate their combined coil current. Each external load circuit also requires protection appropriate to its electrical characteristics.
