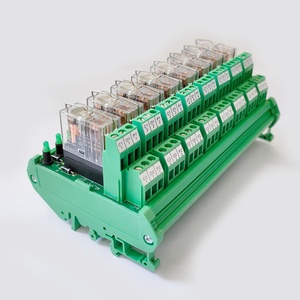

Agility AE-08-012D-2-B-C 8 Channel Relay Board 12V
Agility AE-08-012D-2-B-C is an 8-channel Agility relay board designed for industrial control systems operating with 12 VDC relay coils. It incorporates Omron G2R Series electromechanical relays, with two changeover (DPDT) contact sets per channel. The board provides eight independently controlled relay outputs and sixteen contact poles for switching related control and indication circuits. Each contact is rated at 5 A for 250 VAC or 30 VDC under specified load conditions. Freewheeling diodes suppress coil switching transients, while DIN rail or panel mounting supports control cabinet installation. The 8 Channel Relay Board 12V configuration supports multi-output automation applications. Agility industrial relay components cover additional switching requirements.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-08-012D-2-B-C |
Agility AE-08-012D-2-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | Two Change Over (DPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 12 VDC |
| Number of Channels | 8 Channel Relay Module |
| Contact Rating | 5A at 30VDC/250VAC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
The Agility AE-08-012D-2-B-C relay board provides eight independent relay channels for controlling multiple electrical circuits from compatible 12 VDC control outputs. Each channel incorporates an Omron G2R Series relay with two changeover (DPDT) contacts. The two contact sets belonging to one relay operate together, allowing a single control command to switch two related circuits. For example, one contact can interface a machine-control signal while the second provides an associated status indication. This arrangement delivers sixteen changeover contact poles across eight separately controlled relay channels.
The relay coils operate at 12 VDC, while the contact terminals can switch appropriately rated AC or DC circuits. Each contact is specified at 5 A for 250 VAC or 30 VDC, subject to the connected load and switching conditions. Freewheeling diodes help suppress voltage transients when the coils are de-energized. Where the control system uses 5 VDC instead of 12 VDC, the AE-08-005D-2-B-C provides eight DPDT channels with Omron G2R relays and a different coil-voltage requirement.
This 8 Channel Relay Board 12VDC can be integrated into machine automation panels, PLC interface assemblies, and process-control cabinets requiring several relay-operated functions. Terminal identification, contact-pair wiring, and adequate supply capacity are important when multiple channels operate simultaneously. The listed DIN rail or panel mounting options support installation within industrial enclosures. Applications requiring sixteen independently controlled relay channels can be evaluated against the AE-16-012D-2-B-C, which provides sixteen DPDT channels with 12 VDC coils. The required number of control commands and contact sets determines the appropriate arrangement.
