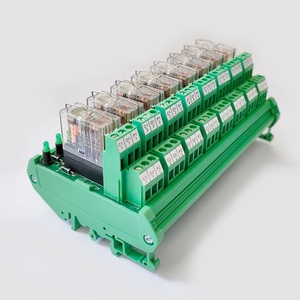

Agility AE-16-024D-2-B-C 16 Channel Relay Board 24V
Agility AE-16-024D-2-B-C is a 16-channel Agility relay board designed for PLC output interfacing and machine control panels using 24 VDC relay coils. It uses Omron G2R Series electromechanical relays, each providing two changeover (DPDT) contact sets operated by one coil. The board offers sixteen independently controlled relay channels and thirty-two mechanically paired contact poles. Each contact is specified at 5 A for 250 VAC or 30 VDC, subject to the connected load. Freewheeling diodes help suppress coil turn-off transients, and DIN rail or panel mounting is listed. The 16 Channel Relay Board 24VDC configuration supports multi-output control applications. Agility relay board options cover related switching arrangements.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-16-024D-2-B-C |
Agility AE-16-024D-2-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | Two Change Over (DPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 24 VDC |
| Number of Channels | 16 Channel Relay Module |
| Contact Rating | 5A at 30VDC/250VAC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
The Agility AE-16-024D-2-B-C relay board combines sixteen independently operated relay channels for PLC output interfacing and industrial machine control panels. Each channel uses an Omron G2R Series relay with a 24 VDC coil and two changeover (DPDT) contact sets. The board provides thirty-two contact poles arranged in sixteen mechanically linked pairs. One relay can switch a machine-control circuit while its second pole operates an associated indication or permissive signal. Both contact sets change together when the corresponding coil is energized.
Each contact is rated at 5 A for 250 VAC or 30 VDC under the specified load conditions. The contact rating should not be confused with the coil current or the total current capacity of the board. When several relays operate simultaneously, the control supply and output drivers must support their combined coil demand. Freewheeling diodes help suppress switching transients generated during coil de-energization. For systems requiring sixteen DPDT channels with 12 VDC coils, the AE-16-012D-2-B-C provides an alternative coil-voltage configuration.
The 16 Channel Relay Board 24VDC is suitable for automation cabinets where numerous discrete commands require organized relay interfacing. Channel identification, contact-pair labeling, terminal access and field wiring separation are important when working with sixteen relays. The board supports DIN rail or panel mounting for integration into industrial control enclosures. Applications requiring fewer independent relay commands can be evaluated against the AE-08-005D-2-B-C, which uses eight 5 VDC DPDT relay channels. The appropriate model depends on the available coil supply, number of control outputs and contact requirements.
