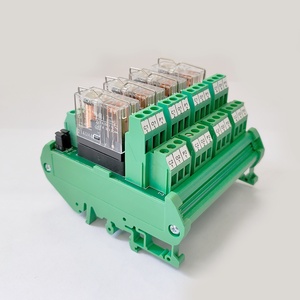

Agility AE-04-024D-2-B-C 4 Channel Relay Board
Agility AE-04-024D-2-B-C 4 Channel Relay Board is an industrial relay interface module designed to provide reliable electrical switching and signal isolation in automation control systems. The relay board integrates four electromechanical relays operating with a 24 VDC coil voltage and supports a two changeover contact configuration for flexible load switching. Built for PLC-based automation environments, the module enables stable interfacing between control outputs and field devices. The Agility Elektrtekniks AE-04-024D-2-B-C (G2R) relay board incorporates Omron G2R series relays, ensuring dependable switching performance, electrical isolation, and consistent operation in industrial control panels and machine automation applications.
| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-04-024D-2-B-C |
Agility AE-04-024D-2-B-C Relay Module â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | Two Change Over (DPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 24 VDC |
| Number of Channels | 4 Channel Relay Module |
| Contact Rating | 5A at 30VDC/250VAC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
Agility AE-04-024D-2-B-C 4 Channel Relay Board is widely recognized as a reliable relay interface solution used for signal switching and load control in industrial automation systems. The board provides four independent relay channels that allow control circuits to operate multiple field devices while maintaining safe electrical separation between control electronics and power circuits.
In industrial applications, this 4 Channel Relay Board is commonly installed in PLC control panels, machine automation cabinets, and process control systems where dependable relay-based switching is required. The integration of Omron G2R series relays ensures stable contact operation, predictable switching performance, and compatibility with standard industrial control voltages.
Designed for long-term operational reliability, the relay board supports efficient control signal interfacing and consistent electrical isolation. Its multi-channel architecture and two changeover contact configuration make it suitable for automation interface tasks such as actuator switching, signal amplification, and industrial load control in modern automation environments.
