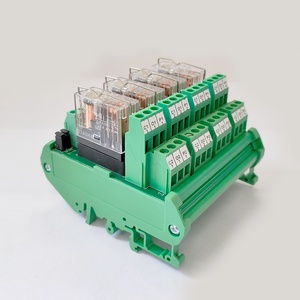

Agility AE-04-005D-2-B-C 4 Channel 5V Relay Module
Agility AE-04-005D-2-B-C is a four-channel Agility relay board for switching paired contact circuits from compatible 5 VDC control outputs. Each channel uses an Omron G2R Series electromechanical relay with two changeover (DPDT) contacts, providing eight contact poles across four independently operated relays. The specified contact rating is 5 A at 250 VAC or 30 VDC, subject to load conditions. Freewheeling diodes help suppress coil turn-off transients, while DIN rail or panel mounting supports installation in control cabinets. This 4 Channel 5V Relay Module suits applications requiring paired control and indication contacts. Agility relay interface components support other industrial switching requirements.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-04-005D-2-B-C |
Agility AE-04-005D-2-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | Two Change Over (DPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 5 VDC |
| Number of Channels | 4 Channel Relay Module |
| Contact Rating | 5A at 30VDC/250VAC |
| Input Interface | PLC / Microcontroller compatible control input |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
The Agility AE-04-005D-2-B-C relay board provides four independently driven 5 VDC relay channels for equipment that requires two contact paths to change with each command. Every Omron G2R Series relay has a DPDT configuration, so its two changeover poles operate together when the corresponding coil energizes. For example, one pole can switch an appropriately rated control circuit while the other changes a related status or permissive contact. Although the board offers eight changeover poles, it contains four separately controlled relays rather than eight independent outputs.
The specified contact rating is 5 A at 250 VAC or 30 VDC under the applicable load conditions. This rating concerns the switched contacts and does not describe the current needed to operate the 5 VDC coils. A microcontroller or PLC output must have an appropriate driver capable of supplying the required coil current. Freewheeling diodes limit inductive turn-off transients, making drive polarity relevant. Where the same four-channel DPDT arrangement is needed with 24 VDC coils, the AE-04-024D-2-B-C provides a different control-supply configuration.
Within a machine control cabinet, each relay's two contact sets should be labeled as a linked pair so maintenance personnel can identify which circuits change together. The board is listed for DIN rail or panel mounting, with wiring access and suitable separation between control and switched circuits considered during installation. For applications requiring eight independently commanded 5 VDC DPDT relays, the AE-08-005D-2-B-C provides additional channels. Selection should reflect actual output count, contact arrangement, load characteristics, and available coil-drive capability.
