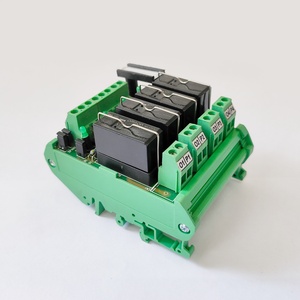

Agility AE-04-024D-1-B-C Four Channel Relay Module
Agility AE-04-024D-1-B-C Four Channel Relay Module is an industrial relay interface board designed to provide reliable electrical isolation and switching control within automation systems. The module integrates four independent relay channels operating with a 24 VDC coil voltage, allowing stable interfacing between PLC outputs and external electrical loads. Built with a one changeover contact configuration, the relay board supports dependable signal switching for machine control and process automation. The Agility Elektrtekniks AE-04-024D-1-B-C (G5Q) relay module incorporates Omron G5Q series relays and includes freewheeling diode coil protection to protect control circuits from voltage spikes generated during relay switching operations.
| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-04-024D-1-B-C |
Agility AE-04-024D-1-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | Omron G5Q Series |
| Coil Voltage | 24 VDC |
| Number of Channels | 4 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control and load circuits |
| Application | PLC interface, automation control panels, machine control systems |
Agility AE-04-024D-1-B-C Four Channel Relay Module is widely recognized as a reliable relay interface solution used for signal isolation and load control in industrial automation systems. The module provides four relay channels that enable control circuits to safely switch multiple electrical loads from a single relay board assembly.
In industrial control panels, this four channel relay module is commonly used to interface PLC outputs with motors, solenoids, contactors, and other field devices requiring relay-based switching. The integration of Omron G5Q series relays ensures stable contact performance, predictable switching behavior, and compatibility with standard automation control voltages.
Designed for long-term operational stability, the relay board incorporates diode-based coil protection to suppress inductive voltage spikes during switching cycles. Its four-channel architecture and changeover relay contacts make the module suitable for automation control tasks requiring reliable electrical isolation, signal amplification, and controlled switching of industrial loads.
