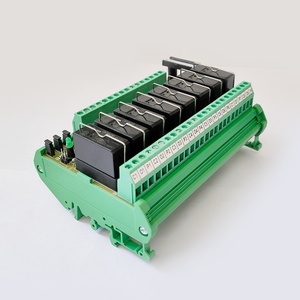

Agility AE-08-024D-1-B-C 24V 8 Channel Relay Board

Agility AE-08-024D-1-B-C is an 8-channel Agility relay board for switching individual field circuits through 24 VDC control signals. It uses eight Omron G5Q Series electromechanical relays, each providing one changeover (SPDT) contact with normally open(NO) and normally closed(NC) connections. The stated contact rating is 10 A at 250 VAC or 30 VDC, subject to the load category and switching conditions. Freewheeling diodes suppress coil turn-off voltage spikes, while DIN rail or panel mounting supports installation in automation cabinets. This 24V 8 Channel Relay Board suits multi-output PLC interfaces and machine-control applications. Agility relay interface components cover other industrial switching requirements.

BrandAgility
ProductRelay Board
Model NumberAE-08-024D-1-B-C

Agility AE-08-024D-1-B-C Relay Board – Technical Overview

SpecificationValue
Relay TypeElectromechanical Relay
Relay Contact TypeOne Change Over (SPDT)
Relay MakeOmron G5Q Series
Coil Voltage24 VDC
Number of Channels8 Channel Relay Board
Contact Rating10 A at 250 VAC / 30 VDC
Input InterfacePLC / Control signal compatible
Mounting TypeDIN Rail / Panel Mount
Relay Coil ProtectionFreewheeling diode protection for each relay channel
IsolationElectrical isolation between control circuit and load circuit
ApplicationPLC interface modules, machine control panels, industrial automation switching

The Agility AE-08-024D-1-B-C relay board provides eight independently controlled switching channels for machines that need multiple discrete outputs in one panel. Each channel uses an Omron G5Q Series relay with a single changeover (SPDT) contact. An individual output can be wired through its normally open(NO) or normally closed(NC) path according to the required circuit behavior. For example, separate channels may interface a machine-ready indication, a contactor control circuit, or an auxiliary alarm, provided each connected load falls within the applicable relay contact rating.

The relay coils operate at 24 VDC, but this does not mean every switched field circuit must use 24 VDC. Coil supply, control-output current capacity, and contact-side load voltage are separate selection considerations. If only four output channels are required, the AE-04-024D-1-B-C provides four 24 VDC SPDT channels using Omron G5Q relays. The stated 10 A at 250 VAC or 30 VDC rating must be checked against inductive loads, inrush current, and the intended switching frequency.

Freewheeling diode protection helps control the transient generated when a DC coil is switched off. For eight channels, panel designers should also consider simultaneous coil current, terminal labeling, separation of control and load wiring, and service access. The AE-08-012D-1-B-C retains eight SPDT channels but uses 12 VDC coils and Omron G2R Series relays, making the supply requirement an important difference. This Agility relay board is listed for DIN rail or panel mounting, allowing its output connections to be grouped in a machine or process-control cabinet.
