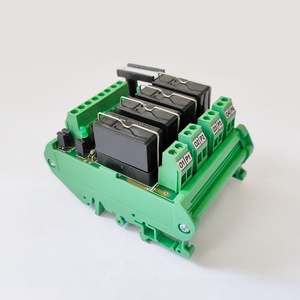

Agility AE-04-005D-1-B-C 4 Channel Relay Card
Agility AE-04-005D-1-B-C 4 Channel Relay Card is an industrial relay interface module designed for reliable signal switching and electrical isolation in automation control systems. The relay board integrates four independent relay channels operating with a 5 VDC coil voltage, enabling stable interfacing with PLC outputs and control electronics. Each relay provides a one changeover contact configuration, allowing dependable switching of field devices and electrical loads. The Agility Elektrtekniks AE-04-005D-1-B-C (G5Q) relay module incorporates OMRON G5Q series relays and includes freewheeling diode coil protection to suppress voltage spikes during relay switching. This design ensures consistent performance and long operational life in industrial control panels and machine automation environments.
| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-04-005D-1-B-C |
Agility AE-04-005D-1-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | Omron G5Q Series |
| Coil Voltage | 5 VDC |
| Number of Channels | 4 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control and load circuits |
| Application | PLC interface, automation control panels, machine control systems |
Agility AE-04-005D-1-B-C 4 Channel Relay Card is widely recognized as a compact relay interface board designed for dependable signal isolation and load switching in industrial automation systems. The module provides four relay channels, allowing control circuits to operate multiple electrical loads through relay-based switching.
In industrial applications, this 4 Channel Relay Card is commonly installed in PLC control panels, automation cabinets, and machine control systems where reliable relay interfacing is required. The integration of OMRON G5Q series relays provides stable contact performance and predictable switching characteristics for industrial electrical loads.
Designed for long-term operational stability, the relay board incorporates freewheeling diode protection across relay coils to reduce voltage transients and protect control electronics. Its four-channel relay architecture, changeover contact configuration, and electrical isolation capability make it suitable for automation interface tasks such as signal amplification, actuator switching, and industrial load control.
