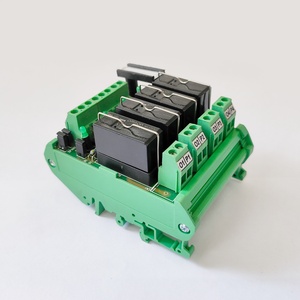

Agility AE-04-012D-1-B-C 12V 4 Channel Relay Module

Agility AE-04-012D-1-B-C is a four-channel Agility relay card designed for automation systems operating with a 12 VDC relay control supply. Each channel uses an Omron G2R Series electromechanical relay with one changeover (SPDT) contact, allowing four separate circuits to be switched independently. The specified contact rating is 10 A at 250 VAC or 30 VDC, subject to load conditions. Freewheeling diodes help suppress coil switching transients, while DIN rail or panel mounting supports installation in control cabinets. This 12V 4 Channel Relay Module can interface suitable PLC outputs and machine-control circuits. Agility relay interface components include additional configurations for industrial switching applications.

BrandAgility
ProductRelay Board
Model NumberAE-04-012D-1-B-C

Agility AE-04-012D-1-B-C Relay Board – Technical Overview

SpecificationValue
Relay TypeElectromechanical Relay
Relay Contact TypeOne Change Over (SPDT)
Relay MakeOmron G2R Series (Other make available on request)
Coil Voltage12 VDC
Number of Channels4 Channel Relay Board
Contact Rating10 A at 250 VAC / 30 VDC
Input InterfacePLC / Control signal compatible
Mounting TypeDIN Rail / Panel Mount
Relay Coil ProtectionFreewheeling Diode
IsolationElectrical isolation between control and load circuits
ApplicationPLC interface, automation control panels, machine control systems

The Agility AE-04-012D-1-B-C relay card provides four independent switching channels for control panels that use a 12 VDC relay supply. Its Omron G2R Series relays feature single changeover (SPDT) contacts, allowing each channel to operate through a normally open(NO) or normally closed(NC) switching path. The four outputs can be assigned to separate machine commands, auxiliary status circuits or appropriately rated contactor interfaces. Because the relay contacts are electrically separate from the coil circuits, the switched load voltage is not determined by the 12 VDC coil specification.

Each relay contact is specified at 10 A for 250 VAC or 30 VDC under the applicable switching conditions. The actual load type, particularly inductive or high-inrush equipment, must be considered when evaluating contact capacity. Freewheeling diode protection helps suppress the inductive voltage transient when a relay coil is de-energized. For applications requiring only two 12 VDC switching channels, the AE-02-012D-1-B-C provides a smaller SPDT arrangement using Omron G2RL Series relays.

The 12V 4 Channel Relay Module supports DIN rail or panel installation in PLC interface cabinets, test equipment and machine-control enclosures. During integration, the controller output must supply sufficient coil current, and diode polarity should be considered. Where four channels are needed with a 24 VDC control supply, the AE-04-024D-1-B-C uses Omron G5Q Series relays with the same SPDT contact arrangement. The difference in coil voltage is important when selecting a replacement or designing a new control circuit. Clear terminal labeling and separation of control wiring from switched field conductors support commissioning and maintenance.
