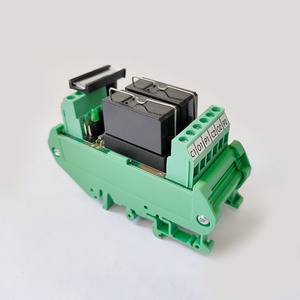

Agility AE-02-012D-1-B-C 2 Channel Relay Board
Agility AE-02-012D-1-B-C is a two-channel Agility relay board designed to interface 12 VDC control signals with independently switched field circuits. It incorporates Omron G2RL Series electromechanical relays, each providing one changeover (SPDT) contact with normally open(NO) and normally closed(NC) switching paths. The specified contact rating is 10 A at 250 VAC or 30 VDC, depending on the connected load conditions. Freewheeling diode protection helps suppress coil switching transients, while DIN rail or panel mounting supports installation in automation cabinets. This 2 Channel Relay Board is suitable for PLC interfacing, auxiliary switching and machine-control applications. Agility industrial relay interfaces include additional control switching configurations.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-02-012D-1-B-C |
Agility AE-02-012D-1-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | OMRON G2RL Series (Other make available on request) |
| Coil Voltage | 12 VDC |
| Number of Channels | 2 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling diode protection for each relay channel |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface modules, machine control panels, industrial automation switching |
The Agility AE-02-012D-1-B-C relay board provides two independently operated switching channels for control systems using a 12 VDC relay supply. Each channel incorporates an Omron G2RL Series relay with one changeover (SPDT) contact. The common terminal can switch between normally open(NO) and normally closed(NC) paths according to the relay state. This configuration can support two separate machine functions, such as an auxiliary control command and an equipment-status signal. Although both relays are mounted on one board, their switched contact circuits can be wired independently within the specified electrical limits.
The relay contacts are specified at 10 A for 250 VAC or 30 VDC under the applicable load conditions. The 12 VDC rating refers to the coil supply rather than the voltage of connected field devices. A compatible controller output or interface driver must provide sufficient current to energize the relay coils. Freewheeling diodes help suppress inductive voltage spikes during coil de-energization. For installations using a 24 VDC control supply, the AE-02-024D-1-B-C offers two SPDT channels with Omron G2R Series relays instead of the G2RL components specified for this model.
This Agility relay board is listed for DIN rail or panel mounting, making it suitable for integration into industrial control enclosures. Its two-channel arrangement can handle separate relay-operated functions without allocating additional unused output positions. Where four channels are required with 12 VDC coils, the AE-04-012D-1-B-C provides a higher channel count using Omron G2R relays. During installation, coil polarity, output drive current, contact load characteristics and terminal identification should be checked. The supplied G2RL relay designation is also important when matching replacement components to existing equipment.
