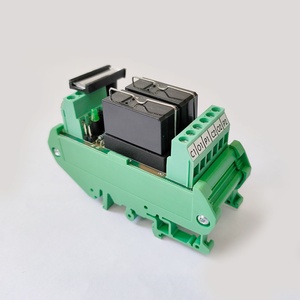

Agility AE-02-005D-1-B-C 2 Channel 5V Relay Module
Agility AE-02-005D-1-B-C 2 Channel 5V Relay Module is an industrial relay interface board designed to provide dependable switching and signal isolation in automation control systems. The relay module integrates two independent relay channels operating with a 5 VDC coil voltage, allowing reliable interfacing between low-power control signals and higher load circuits. Designed with a one changeover relay contact configuration, the module enables stable switching for industrial loads and field devices. The Agility Elektrtekniks AE-02-005D-1-B-C (G2R) relay module incorporates Omron G2R series relays, supporting consistent switching performance and long operational reliability within PLC panels and machine control systems.
| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-02-005D-1-B-C |
Agility AE-02-005D-1-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | OMRON G2R Series (Other make available on request) |
| Coil Voltage | 5 VDC |
| Number of Channels | 2 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface modules, machine control panels, industrial automation switching |
Agility AE-02-005D-1-B-C 2 Channel 5V Relay Module is widely recognized as a compact relay interface solution designed for reliable signal switching and electrical isolation in industrial automation systems. The module provides two relay channels that allow control circuits to safely switch external loads through electromechanical relay contacts.
In industrial environments, this 2 Channel 5V Relay Module is commonly used in PLC control panels, machine automation cabinets, and control signal interface boards where dependable relay switching is required. The use of Omron G2R series relays ensures stable contact performance and compatibility with standard industrial control systems.
Designed for long-term operational stability, the relay board provides efficient separation between control electronics and load circuits. Its dual-channel relay configuration and changeover contact structure make it suitable for signal amplification, actuator control, and automation interface applications requiring dependable electrical switching.
