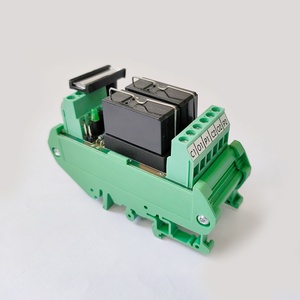

Agility AE-02-024D-1-B-C 2 Channel 24V Relay Module
Agility AE-02-024D-1-B-C is a two-channel Agility relay board designed to interface 24 VDC control outputs with separately switched field circuits. It incorporates Omron G2R Series electromechanical relays, each providing one changeover (SPDT) contact for normally open(NO) or normally closed(NC) switching. The contacts are rated at 10 A for 250 VAC or 30 VDC under applicable load conditions. Freewheeling diode protection reduces coil switching transients, while DIN rail or panel mounting supports installation in industrial cabinets. This 2 Channel 24V Relay Module is suitable for paired control functions in PLC interfaces and machine automation. Other Agility relay products support industrial switching applications with different electrical requirements.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-02-024D-1-B-C |
Agility AE-02-024D-1-B-C Relay Module â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 24 VDC |
| Number of Channels | 2 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control and load circuits |
| Application | PLC interface, automation control panels, machine control systems |
The Agility AE-02-024D-1-B-C relay board provides two independently operated relay channels for industrial control systems requiring separate switching functions. Each channel uses an Omron G2R Series electromechanical relay with one changeover (SPDT) contact. In a machine-control panel, one output may operate a suitably rated contactor coil while the second handles an auxiliary indication or equipment-enable signal. The normally open(NO) and normally closed(NC) terminals allow the required contact state to be selected for each circuit. Both channels operate independently, making this industrial relay module suitable for control applications where two commands must be managed separately.
The relay coils require a 24 VDC supply, while the switched contacts can operate circuits within their specified electrical limits. Each contact is rated at 10 A for 250 VAC or 30 VDC under applicable load conditions. The connected controller must provide sufficient coil-drive current, and inductive loads require consideration of inrush current and switching duty. For installations using a 12 VDC control supply, the AE-02-012D-1-B-C provides two SPDT channels with Omron G2RL Series relays.
Freewheeling diode protection helps suppress inductive voltage transients when the relay coils are de-energized. The Agility relay is listed for DIN rail or panel mounting, allowing installation alongside PLC interfaces and other automation components. Where four separate 24 VDC relay commands are required, the AE-04-024D-1-B-C offers four SPDT channels using Omron G5Q relays. During installation, correct terminal identification, coil polarity, output current capacity, and individual load protection should be checked against the machine wiring requirements.
