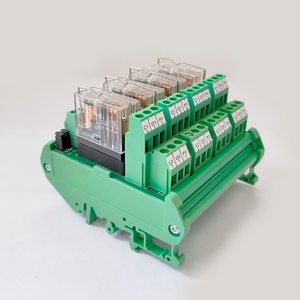

Agility AE-02-012D-2-B-C 12V 2 Channel Relay Module

Agility AE-02-012D-2-B-C is a two-channel Agility relay board designed for control circuits requiring 12 VDC relay operation and dual changeover switching. It incorporates Omron G2R Series electromechanical relays, with each channel providing two changeover (DPDT) contact sets operated by a single coil. The contacts are rated at 5 A for 250 VAC or 30 VDC under the specified load conditions. Freewheeling diodes help suppress coil switching transients, while DIN rail or panel mounting supports installation in automation cabinets. This 12V 2 Channel Relay Module can interface separate machine-control signals with external circuits. Agility relay interface components support related industrial switching applications.

BrandAgility
ProductRelay Board
Model NumberAE-02-012D-2-B-C

Agility AE-02-012D-2-B-C Relay Board – Technical Overview

SpecificationValue
Relay TypeElectromechanical Relay
Relay Contact TypeTwo Change Over (DPDT)
Relay MakeOmron G2R Series (Other make available on request)
Coil Voltage12 VDC
Number of Channels2 Channel Relay Module
Contact Rating5A at 30VDC/250VAC
Input InterfacePLC / Control signal compatible
Mounting TypeDIN Rail / Panel Mount
Relay Coil ProtectionFreewheeling Diode
IsolationElectrical isolation between control circuit and load circuit
ApplicationPLC interface, automation control panels, machine control systems

The Agility AE-02-012D-2-B-C relay board provides two independently controlled relay channels with 12 VDC coils and Omron G2R Series switching components. Each relay uses a two changeover (DPDT) contact arrangement, allowing two electrically separate contact paths to change together when the corresponding coil is energized. This configuration is useful in machine-control circuits where one command operates a field device while an additional contact provides an associated status or auxiliary signal. The board offers four changeover contact poles across two independently operated relay channels.

The specified contact rating is 5 A at 250 VAC or 30 VDC, subject to load characteristics and switching conditions. The 12 VDC specification refers to the relay coils rather than the voltage applied to the connected field circuits. Freewheeling diode protection helps reduce inductive transients during coil de-energization. For applications requiring two independently controlled relay channels with a single changeover contact per channel, the AE-02-012D-1-B-C provides a 12 VDC SPDT alternative using Omron G2RL Series relays.

This 2 Channel Relay Board 12VDC can be installed in PLC interface panels, machine automation cabinets and auxiliary control circuits where two commands require paired contact switching. The DIN rail or panel mounting arrangement supports integration with existing control-panel wiring. Coil drive current, polarity, contact loading and terminal assignments should be checked during installation. Where the control system uses a 24 VDC supply instead, the AE-02-024D-2-B-C offers a related two-channel DPDT configuration. Each relay's paired contacts operate together, making the arrangement suitable for linked switching functions rather than four independently controlled outputs.
