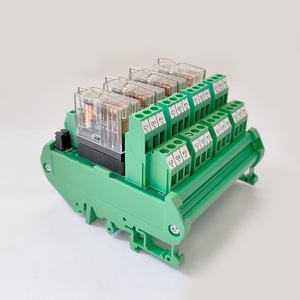

Agility AE-02-024D-2-B-C Double Channel Relay
Agility AE-02-024D-2-B-C Double Channel Relay Module is an industrial relay interface board designed for dependable switching and electrical isolation in automation control systems. The module integrates two relay channels with a 24 VDC coil voltage, allowing stable operation in PLC and control signal environments. Designed as a two change over relay board, it supports reliable switching of field devices and control circuits within machine automation panels. The Agility Elektrtekniks AE-02-024D-2-B-C (G2R) module incorporates Omron G2R series relays to deliver consistent contact performance and long operational life in industrial control applications requiring dependable relay-based switching.
| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-02-024D-2-B-C |
Agility AE-02-024D-2-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | Two Change Over (DPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 24 VDC |
| Number of Channels | 2 Channel Relay Module |
| Contact Rating | 5A at 30VDC/250VAC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
Agility AE-02-024D-2-B-C Double Channel Relay Module is widely recognized as a compact relay interface solution used for reliable signal switching in industrial automation systems. The module provides two independent relay outputs, enabling control circuits to operate external loads while maintaining electrical isolation between control and power circuits.
In industrial environments, this double channel relay board is commonly installed in PLC control panels, machine automation cabinets, and process control systems where dependable relay switching is required. The integration of Omron G2R series relays supports stable switching characteristics and reliable performance in automation control architectures.
Designed for continuous operation, the relay board supports efficient signal interfacing between PLC outputs and field devices. Its dual-channel configuration, changeover contact structure, and DC coil operation make it suitable for industrial control tasks such as actuator switching, signal amplification, and load control in machine automation systems.
