Agility AE-02-005D-2-B-C Two Channel Relay Module

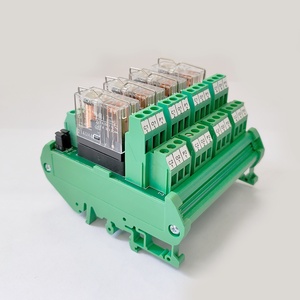

Agility AE-02-005D-2-B-C is a two-channel Agility relay board designed for switching paired control circuits using 5 VDC relay coils. It incorporates Omron G2R Series electromechanical relays, each providing two changeover (DPDT) contact sets operated by one coil. The board offers two independently controlled relay channels with four contact poles for switching related electrical functions. Each contact is specified at 5 A for 250 VAC or 30 VDC, subject to load conditions. Freewheeling diodes suppress coil switching transients, while DIN rail or panel mounting supports installation in automation cabinets. This Two Channel Relay Module suits PLC interfacing and machine-control applications. Agility relay interface components cover related industrial switching requirements.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-02-005D-2-B-C |
Agility AE-02-005D-2-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | Two Change Over (DPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 5 VDC |
| Number of Channels | 2 Channel Relay Module |
| Contact Rating | 5A at 30VDC/250VAC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
The Agility AE-02-005D-2-B-C relay board provides two independently operated relay channels for automation circuits requiring dual-pole switching. Each channel uses an Omron G2R Series relay with a 5 VDC coil and two changeover (DPDT) contact sets. Both contact poles respond to the same coil command, allowing a machine-control circuit and an associated indication or auxiliary signal to change together. The board therefore provides four changeover poles but only two independently controlled relay operations. This arrangement is relevant to PLC interfaces, machine automation panels and control circuits requiring mechanically linked switching functions.
The relay contacts are specified at 5 A for 250 VAC or 30 VDC under the applicable load conditions. These ratings apply to the switching contacts and should not be confused with the 5 VDC coil supply. A compatible electronic driver must provide sufficient current to energize each relay, while freewheeling diode protection helps suppress inductive turn-off transients. For an application requiring only one 5 VDC DPDT relay channel, the AE-01-005D-2-B provides the same type of dual-changeover contact arrangement with fewer independently controlled outputs.
The Two Channel Relay Module supports DIN rail or panel mounting for integration into industrial control cabinets. During installation, both contact sets belonging to each relay should be identified correctly because they operate together rather than independently. The AE-04-005D-2-B-C provides four 5 VDC DPDT relay channels for systems requiring additional separately commanded switching functions. The appropriate configuration depends on the number of control signals, the contact arrangement and the electrical characteristics of connected loads. Each contact circuit should be assessed individually, particularly when switching inductive devices with higher inrush currents.
