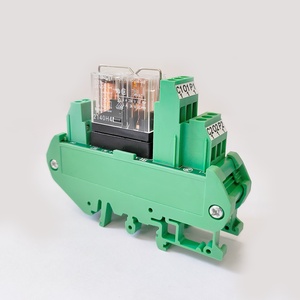

Agility AE-01-005D-2-B 5V 1 Channel Relay

Agility AE-01-005D-2-B is a single-channel Agility relay board designed for control circuits requiring two changeover contacts from one relay command. It uses an Omron G2R Series electromechanical relay with a 5 VDC coil and DPDT contact configuration. Both contact poles operate together, allowing separate control and indication circuits to respond to the same switching signal. Each contact is rated at 5 A for 250 VAC or 30 VDC under specified load conditions. Freewheeling diode protection limits coil switching transients, while DIN rail or panel mounting supports installation in automation cabinets. This 5V 1 Channel Relay configuration suits individual machine-control functions. Agility relay board solutions include related industrial switching components.

BrandAgility
ProductRelay Board
Model NumberAE-01-005D-2-B

Agility AE-01-005D-2-B Relay Board – Technical Overview

SpecificationValue
Relay TypeElectromechanical Relay
Relay Contact TypeTwo Change Over (DPDT)
Relay MakeOmron G2R Series (Other make available on request)
Coil Voltage5 VDC
Number of Channels1 Channel
Contact Rating5A at 30VDC/250VAC
Input InterfacePLC / Control signal compatible
Mounting TypeDIN Rail / Panel Mount
Relay Coil ProtectionFreewheeling Diode
IsolationElectrical isolation between control circuit and load circuit
ApplicationPLC interface, automation control panels, machine control systems

The Agility AE-01-005D-2-B relay board provides one independently controlled relay channel with two changeover (DPDT) contact poles. Its Omron G2R Series relay operates from a 5 VDC coil supply, allowing both contact sets to change state simultaneously when the control signal energizes the relay. This arrangement is useful in machine automation where one command must operate two related electrical functions. For example, one contact can control an appropriately rated auxiliary circuit while the second provides a separate indication signal. Although two contact sets are available, they cannot be controlled independently because both belong to the same relay.

The specified contact rating is 5 A at 250 VAC or 30 VDC, depending on the connected load and applicable switching conditions. The 5 VDC coil specification refers to relay actuation rather than the voltage supplied to the external contact circuits. Freewheeling diode protection reduces the inductive voltage transient when the coil is de-energized. For applications requiring a single DPDT relay with a 12 VDC coil, the AE-01-012D-2-B provides a different control-voltage configuration.

This 5V 1 Channel Relay Board can be installed in PLC interface panels, machine-control cabinets and auxiliary switching circuits using its listed DIN rail or panel mounting arrangement. The controller output must provide sufficient coil-drive current, and both switched circuits require appropriate load protection. When two independently controlled DPDT relay channels are required, the AE-02-005D-2-B-C offers a two-channel 5 VDC configuration. Its additional relay allows two separate commands rather than two contact sets following one command.
