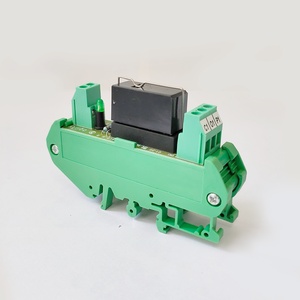

Agility AE-01-024D-1-B 1 Channel Relay Board
Agility AE-01-024D-1-B is a single-channel Agility relay board designed for interfacing 24 VDC control signals with external electrical circuits. It incorporates an Omron G2R Series electromechanical relay with one changeover (SPDT) contact, allowing normally open(NO) or normally closed(NC) switching through a single output. The contact rating is specified as 10 A at 250 VAC or 30 VDC, subject to the connected load conditions. A freewheeling diode helps suppress coil switching transients, while electrical separation between the control and load circuits supports relay-based interfacing. This 1 Channel Relay Board supports DIN rail or panel installation in automation cabinets. Agility industrial switching components cover additional relay interface requirements.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-01-024D-1-B |
Agility AE-01-024D-1-B Relay Module â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | Omron G2R Series (Other make available on request) |
| Coil Voltage | 24 VDC |
| Number of Channels | 1 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control and load circuits |
| Application | PLC interface, automation control panels, machine control systems |
The Agility AE-01-024D-1-B relay board provides one electromechanical switching channel for machine-control applications requiring an individual relay output. Its Omron G2R Series relay operates through a 24 VDC coil and provides one changeover (SPDT) contact with common, normally open(NO) and normally closed(NC) terminals. This configuration can interface a PLC output with an appropriately rated contactor coil, equipment-status indication or auxiliary control circuit. The relay contacts provide electrical separation between the coil circuit and the switched load.
The stated contact rating is 10 A at 250 VAC or 30 VDC under the applicable switching conditions. This rating describes the relay contact capability rather than the current supplied by the controller output. A freewheeling diode helps suppress the voltage transient generated when the relay coil is de-energized. For applications requiring two independently operated relay outputs with the same 24 VDC coil supply, the AE-02-024D-1-B-C provides a two-channel SPDT configuration.
The Agility relay board is listed for DIN rail or panel mounting, making it suitable for compact industrial control enclosures. During installation, the coil polarity, controller output current and actual contact load should be checked against the equipment requirements. The AE-01-005D-1-B offers a single-channel alternative using a 5 VDC coil and Omron G2RL Series relay. Its control supply requirements differ from this 24 VDC model. The single-channel arrangement also makes output identification and troubleshooting straightforward when only one relay-operated function is needed.
