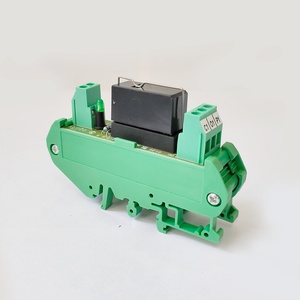

Agility AE-01-005D-1-B Single Channel 5V Relay Module
Agility AE-01-005D-1-B Single Channel 5V Relay Module is an industrial relay interface board designed for dependable signal switching and electrical isolation in automation control systems. This relay board features a single-channel configuration with a 5 VDC coil voltage, enabling reliable operation within low-voltage control circuits and PLC-based systems. Built with a one changeover relay contact, the module supports efficient switching of connected electrical loads while maintaining separation between control and power circuits. The Agility Elektrtekniks AE-01-005D-1-B relay module integrates OMRON G2RL series relays to provide stable contact performance and consistent operation in industrial control panels and machine automation environments.
| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-01-005D-1-B |
Agility AE-01-005D-1-B Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | OMRON G2RL Series (Other make available on request) |
| Coil Voltage | 5 VDC |
| Number of Channels | 1 Channel |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
Agility AE-01-005D-1-B Single Channel 5V Relay Module is widely used as a compact relay interface solution designed for reliable control signal switching in industrial automation systems. The module provides a single relay channel that allows control electronics to operate external electrical loads safely through relay-based isolation.
In industrial applications, this Single Channel 5V Relay Module is commonly installed in PLC panels, automation cabinets, and machine control systems where stable switching and signal isolation are required. The use of OMRON G2RL series relays ensures dependable contact switching, consistent electrical performance, and compatibility with standard industrial control interfaces.
Designed for continuous industrial operation, the relay board provides efficient electrical isolation between control circuits and load circuits. Its compact relay architecture and changeover contact configuration make it suitable for PLC output interfacing, actuator switching, and automation control tasks requiring reliable relay-based switching.
