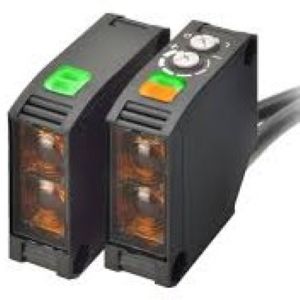

Omron E3JK-TR12 2M Through-beam Photoelectric Sensor

Omron E3JK-TR12 2M is a through-beam photoelectric sensor designed to detect objects passing between a separate emitter and receiver. It provides a 5 m sensing distance using red LED light and supports relay output switching with selectable Light-ON/Dark-ON operation. The sensor operates from 24 to 240 VAC or VDC and offers a maximum response time of 20 ms. Its ABS housing provides IP64 protection, while the 2 m pre-wired cable supports electrical connectivity. The E3JK-TR12 belongs to the E3JK range of Through-Beam Photoelectric Sensors used in industrial automation. Omron Industrial Sensing Products support detection applications in conveyor and packaging systems.

BrandOmron
Product TypePhotoelectric Sensor
Product NumberE3JK-TR12 2M

Omron E3JK-TR12 2M Through-beam Photoelectric Sensor – Technical Overview

SpecificationValue
Sensing MethodThrough-beam
EmitterE3JK-TR12-L 2M
ReceiverE3JK-TR12-D 2M
Sensing Distance5 m
OutputRelay
Connection MethodPre-wired Cable, 2 m Length
Operation ModeLight-ON / Dark-ON selectable
Light SourceRed LED
Response Time20 ms max.
Power Supply24–240 VDC / 24–240 VAC, 50/60 Hz
Degree of ProtectionIP64
MaterialABS

The Omron E3JK-TR12 2M through-beam photoelectric sensor detects objects by monitoring the interruption of a light beam transmitted between a dedicated emitter and receiver. Its 5 m sensing distance makes it suitable for conveyor monitoring, object counting, and material handling systems requiring non-contact detection. The Omron E3JK sensor uses a red LED light source with relay output switching and selectable Light-ON/Dark-ON operation. It supports a 24 to 240 VAC or VDC power supply, with a maximum response time of 20 ms. Unlike diffuse-reflective sensors, through-beam detection depends on the interruption of the direct optical path rather than light reflected from the target surface.

The E3JK-TR12 includes two separate sensing components identified as E3JK-TR12-L 2M for the emitter and E3JK-TR12-D 2M for the receiver. Its pre-wired 2 m cables provide electrical connections, while the IP64-rated ABS enclosures protect against specified dust and water exposure. For applications requiring a longer sensing distance, a 40 m through-beam range with red LED illumination and relay output is available in the E3JK-TR11 2M.

Industrial applications include detecting packages between conveyor sections, confirming product movement, and monitoring objects at automated transfer points. The selectable output mode determines relay switching behaviour when the beam is received or interrupted. The E3JK-TR12-C 2M variant includes a mounting bracket, while the standard E3JK-TR12 2M is listed without one. The required sensing distance, optical arrangement, relay output characteristics, and supply voltage determine which configuration is appropriate. For applications requiring a reflector-based sensing arrangement, retro-reflective detection with a specified 100 mm to 7 m range when paired with an E39-R1 reflector is available in the E3JK-RR11 2M.
