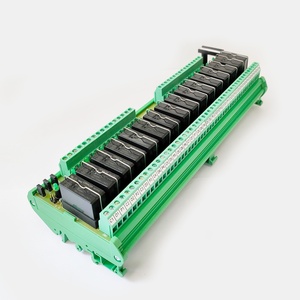

Agility AE-16-005D-1-B-C 16 Channel Relay Board
Agility AE-16-005D-1-B-C is a 16-channel Agility relay board designed for controlling multiple electrical circuits through compatible 5 VDC relay drivers. The board incorporates sixteen Omron G5Q Series electromechanical relays, each providing one changeover (SPDT) contact for independent switching. Its contacts are rated at 10 A for 250 VAC or 30 VDC under specified load conditions. Freewheeling diodes suppress coil switching transients, while electrical isolation separates the control and switched circuits. The 16 Channel Relay Board configuration supports machine automation, PLC interfacing and multi-output control applications. Agility industrial relay components include related switching solutions for different channel and voltage requirements.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-16-005D-1-B-C |
Agility AE-16-005D-1-B-C Relay Module â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | OMRON G5Q Series |
| Coil Voltage | 5 VDC |
| Number of Channels | 16 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
The Agility AE-16-005D-1-B-C relay board provides sixteen independently operated switching channels for industrial automation systems requiring numerous discrete outputs. Each channel uses an Omron G5Q Series relay with one changeover (SPDT) contact, allowing normally open(NO) or normally closed(NC) switching according to the circuit requirement. This relay board 16 channel configuration can interface multiple machine-control signals, auxiliary contactor circuits and status indicators within a single control cabinet. The individual relay channels allow separate commands to operate different connected devices without requiring individual relay assemblies for every switching point.
The board operates with 5 VDC relay coils, while each contact is specified at 10 A for 250 VAC or 30 VDC under applicable switching conditions. These contact ratings must be evaluated according to load characteristics, particularly when controlling inductive devices. When several relays operate simultaneously, the controller interface and power supply must support their combined coil current. Freewheeling diodes help suppress inductive voltage transients during coil de-energization. For applications requiring fewer outputs, the AE-08-005D-1-B-C offers eight 5 VDC SPDT channels using Omron G5Q relays.
The Agility relay board supports DIN rail or panel mounting for integration into machine automation and process-control cabinets. With sixteen channels, terminal identification, wire routing and accessible connections become important during installation and maintenance. The AE-16-005D-2-B-C provides another sixteen-channel configuration using Omron G2RL Series relays with two changeover (DPDT) contacts per channel and a specified 5 A contact rating. This distinction matters when an application requires two mechanically linked switching paths instead of one SPDT contact. Individual circuit protection and coil-drive compatibility should be considered when integrating either arrangement.
