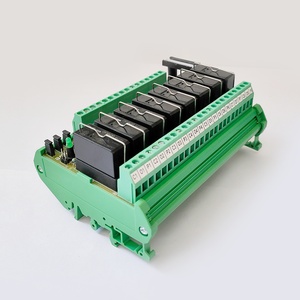

Agility AE-08-005D-1-B-C 8 Channel 5V Relay Module
Agility AE-08-005D-1-B-C is an 8-channel Agility relay board designed for switching multiple field circuits through compatible 5 VDC control outputs. The module incorporates eight Omron G5Q Series electromechanical relays, each providing a single changeover (SPDT) contact with normally open(NO) and normally closed(NC) connections. Its contact rating is specified as 10 A at 250 VAC or 30 VDC, subject to the connected load and switching conditions. Freewheeling diodes help suppress coil turn-off transients, while DIN rail or panel mounting supports installation in automation cabinets. This 8 Channel 5V Relay Module suits multi-output control applications. Agility relay interface products include related industrial switching configurations.

| Brand | Agility |
| Product | Relay Board |
| Model Number | AE-08-005D-1-B-C |
Agility AE-08-005D-1-B-C Relay Board â Technical Overview
| Specification | Value |
|---|---|
| Relay Type | Electromechanical Relay |
| Relay Contact Type | One Change Over (SPDT) |
| Relay Make | Omron G5Q Series |
| Coil Voltage | 5 VDC |
| Number of Channels | 8 Channel Relay Board |
| Contact Rating | 10 A at 250 VAC / 30 VDC |
| Input Interface | PLC / Control signal compatible |
| Mounting Type | DIN Rail / Panel Mount |
| Relay Coil Protection | Freewheeling Diode |
| Isolation | Electrical isolation between control circuit and load circuit |
| Application | PLC interface, automation control panels, machine control systems |
The Agility AE-08-005D-1-B-C relay board provides eight independently controlled switching channels for automation equipment using a compatible 5 VDC control interface. Each channel incorporates an Omron G5Q Series relay with one changeover (SPDT) contact, allowing individual circuits to use normally open(NO) or normally closed(NC) switching. The eight outputs can be assigned to separate machine-status indicators, auxiliary control signals or appropriately rated actuator interfaces. Its multi-channel construction groups these functions within one assembly while maintaining separate relay contact paths.
The 5 VDC specification refers to the relay coil supply, not the voltage of the connected field loads. Electronic controllers must provide sufficient drive current, particularly when several channels operate simultaneously. Freewheeling diodes help limit inductive voltage spikes during coil de-energization. Each contact is specified at 10 A for 250 VAC or 30 VDC under applicable load conditions. For equipment using a 12 VDC control supply, the AE-08-012D-1-B-C provides eight SPDT channels with Omron G2R Series relays.
In multi-station machinery, an 8 Channel 5V Relay Module can organize several discrete switching functions within a PLC interface or control cabinet. Proper channel identification, terminal accessibility and separation of control wiring from load circuits support installation and maintenance. Applications requiring two changeover contact poles per relay can consider the AE-08-005D-2-B-C, which uses eight Omron G2R Series DPDT relays with 5 A contact ratings. The SPDT configuration of the AE-08-005D-1-B-C provides one changeover contact per channel, making contact arrangement, load characteristics and available coil-drive capacity important selection factors.
