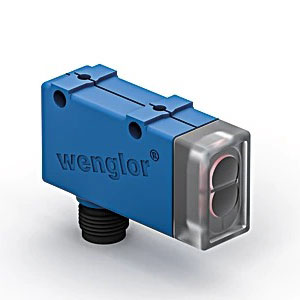

Wenglor WM03PCT2ST614 Photoelectronic Sensors
The Wenglor WM03PCT2ST614 is a Photoelectronic Sensor developed for accurate object detection in automated industrial systems. It delivers fast response, dependable optical sensing, and stable switching performance to support continuous production processes. The compact design allows flexible installation while providing consistent detection for machine automation, material handling, and process control applications.
| Brand | Wenglor |
| Product | Photoelectronic Sensors |
| Model Number | WM03PCT2ST614 |
Wenglor WM03PCT2ST614 Photoelectronic Sensors - Technical Specifications
| Specification | Value |
|---|---|
| Working Range | 12 ... 18 mm |
| Working Distance | 15 mm |
| Resolution (Gray Scale) | 20 |
| Switching Hysteresis | < 2 % |
| Light Source | White Light |
| Wavelength | 400 ... 700 nm |
| Service Life (T = +25 °C) | 100,000 h |
| Max. Ambient Light | 10,000 Lux |
| Light Spot Diameter | 1.5 × 2.5 mm |
| Supply Voltage | 10 ... 30 V DC |
| Current Consumption (Ub = 24 V) | < 30 mA |
| Switching Frequency | 10 kHz |
| Response Time | 50 µs |
| Off-Delay | 20 ms |
| Temperature Drift | < 2 % |
| Temperature Range | -25 ... 60 °C |
| Switching Output Voltage Drop | < 2.5 V |
| PNP Switching Output/Switching Current | 200 mA |
| Short Circuit Protection | yes |
| Reverse Polarity Protection | yes |
| Overload Protection | yes |
| Lockable | yes |
| Protection Class | III |
| Setting Method | Teach-In |
| Housing Material | Plastic, PBT |
| Optic Cover | Plastic, PMMA |
| Degree of Protection | IP67 |
| Connection | M12 × 1; 4-pin |
| Weight | 51 g |
| Scope of delivery | 1 × initial start-up instructions, 1 × sensor |
The Wenglor WM03PCT2ST614 Photoelectronic Sensor operates by transmitting a light beam and monitoring changes in the received signal when an object enters the sensing area. This optical detection method enables precise identification of products, components, and moving materials, helping automated equipment perform accurate control and monitoring functions.
This sensor is widely used in conveyor systems, packaging lines, assembly stations, warehouse automation, and product inspection equipment. It supports applications such as object presence detection, counting, positioning, sorting, and transfer verification, improving process accuracy while reducing production interruptions.
Engineered for demanding industrial environments, the WM03PCT2ST614 provides reliable operation under continuous manufacturing conditions. Its durable housing withstands vibration, dust, and everyday factory exposure, while the compact construction simplifies installation in limited spaces. Stable sensing performance helps maintain efficient machine operation with minimal maintenance requirements.
