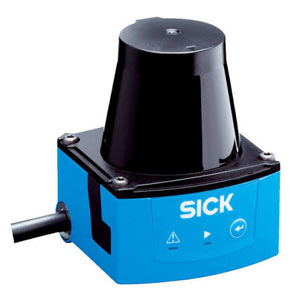

SICK TIM310-1030000 1052627 LiDAR Sensors
The TIM310-1030000 is a SICK 2D LiDAR sensor, part number 1052627, developed for contactless area and object monitoring in industrial environments. It provides a 270° aperture angle, a working range from 0.05 m to 4 m, and a 15 Hz scanning frequency. Its compact design supports installation where reliable detection across a defined monitoring field is required.
| Brand | SICK |
| Product | LiDAR Sensors |
| Model Number | TIM310-1030000 |
SICK TIM310-1030000 1052627 LiDAR Sensors - Technical Specifications
| Specification | Value |
|---|---|
| Application | Indoor |
| Measurement principle | HDDM+ |
| Light source | Infrared (850 nm) |
| Aperture angle Horizontal | 270° |
| Scanning frequency | 15 Hz |
| Angular resolution Horizontal | 1° |
| Working range | 0.05 m ... 4 m |
| Digital output output current IA | ≤ 100 mA |
| Supply voltage UB | 9 V DC ... 28 V DC |
| Power consumption | Typ. 4 W, 16 W with 4 max. loaded digital outputs |
| Enclosure rating | IP65 |
| Protection class | III |
| Connection type | 1 x 15-pin D-sub HD male connector (0.9 m) |
| Dimensions (W x H x D) | 60 mm x 60 mm x 79 mm |
| Weight | 150 g, without connecting cables |
| Ambient temperature, operation | –10 °C ... +50 °C |
| Ambient temperature, storage | –30 °C ... +70 °C |
| Typ. Ambient light immunity | 80,000 lx |
| Housing color | Light blue (RAL 5012) |
The SICK TIM310-1030000 uses infrared laser pulses to scan its surroundings and identify objects within a two-dimensional detection field. The sensor measures reflected light from surrounding surfaces and evaluates the scan data to determine whether objects enter configured monitoring areas. This principle enables non-contact detection without requiring a physical target switch.
In industrial automation, the TIM310-1030000 can be used for area monitoring around machines, object detection on material-handling equipment, presence checking, collision avoidance support, and monitoring of defined zones. Its wide scanning angle allows one unit to observe a larger area, which can reduce the need for multiple point-based sensors in suitable applications.
The compact housing makes the TIM310-1030000 suitable for machines and mobile equipment where installation space is limited. Its IP65 enclosure rating provides protection against dust and water jets, while the specified operating temperature range supports use in typical industrial environments. The solid-state scanning design also helps provide consistent operation without relying on external moving detection components.
