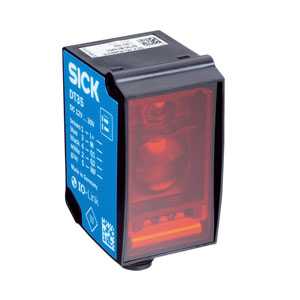

SICK DT35-B15251 1057652 Laser Distance Sensors
The DT35-B15251 is a SICK laser distance sensor, part number 1057652, designed for contactless distance measurement in industrial automation. It provides a measuring range from 50 mm up to 12,000 mm on targets with 90% remission, offers 100 µm resolution, and has a response time starting from 2.5 ms. The sensor is suitable for precise position and distance monitoring where stable measurement is required in automated machinery.
| Brand | SICK |
| Product | Laser Distance Sensors |
| Model Number | DT35-B15251 |
SICK DT35-B15251 1057652 Laser Distance Sensors - Technical Specifications
| Specification | Value |
|---|---|
| Measuring range | 50 mm ... 12,000 mm, 90% remission factor, 50 mm ... 5,300 mm, 18% reflection factor, 50 mm ... 3,100 mm, 6% remission factor |
| Target | Natural objects |
| Resolution | 100 µm |
| Repeatability | ≥ 0.5 mm |
| Measurement accuracy | Typ. ± 10 mm |
| Response time | 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms |
| Switching frequency | 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz |
| Output time | 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms |
| Light source | Laser, red |
| Type of light | Visible red light |
| Typ. light spot size (distance) | 15 mm x 15 mm (at 2 m) |
| IO-Link | ✔ , IO-Link V1.1 |
| Function | Process data, parameterization, diagnosis |
| Data transmission rate | 38.4 kbit/s |
| Digital output Number | 1 ... 2 |
| Digital output Type | Push-pull: PNP/NPN |
| Digital output Function | Output Q2 adaptable: Current output / Voltage output / Digital output |
| Digital output output current IA | ≤ 100 mA |
| Analog output Number | 1 |
| Analog output Type | Current output / voltage output |
| Analog output Function | Output Q2 adaptable: Current output / Voltage output / Digital output |
| Analog output Current | 4 mA ... 20 mA, ≤ 450 Ω |
| Analog output Voltage | 0 V ... 10 V, ≥ 50,000 Ω |
| Analog output Resolution | 12 bit |
| Hysteresis | 0 mm ... 11,950 mm |
| Supply voltage UB | DC 12 V ... 30 V |
| Power consumption | ≤ 1.7 W |
| Ripple | ≤ 5 Vpp |
| Initialization time | ≤ 500 ms |
| Warm-up time | ≤ 20 min |
| Display | LEDs |
| Enclosure rating | IP65, IP67 |
| Protection class | III |
| Connection type | Male connector, M12, 5-pin |
| Dimensions (W x H x D) | 32 mm x 58.67 mm x 42.7 mm |
| Housing material | Plastic (ABS/PC) |
| Window material | Plastic (PMMA) |
| Weight | 65 g |
| Ambient temperature, operation | –30 °C ... +55 °C, Uv ≤ 24 V |
| Ambient temperature, storage | –40 °C ... +75 °C |
| Typ. Ambient light immunity | 40 klx |
The SICK DT35-B15251 measures the distance between the sensor and a target without physical contact. It uses time-of-flight technology with visible red laser light, calculating distance from the travel time of emitted and returned light pulses. The sensor can measure up to 12 m on targets with 90% remission, while its 100 µm resolution supports detailed measurement of changing object positions.
In automated machinery, the DT35-B15251 can be used for position monitoring, object distance measurement, material handling, storage and retrieval equipment, conveyor systems, and production-line control. It is suitable where machines need continuous distance information to check component position, monitor movement, control handling equipment, or maintain a defined distance from an object.
The DT35-B15251 uses an ABS/PC plastic housing and PMMA optical window in a compact 32 × 58.67 × 42.7 mm body. IP65 and IP67 enclosure ratings provide protection against dust and water exposure encountered in industrial installations. A 12–30 V DC supply, M12 5-pin connector, and robust construction make the sensor suitable for integration into machinery and automation equipment requiring dependable distance measurement.
