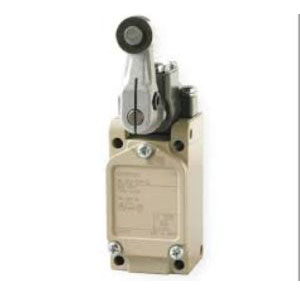

Omron WLCL-2N Adjustable Rod Lever Limit Switch
Omron WLCL-2N is an Adjustable Rod Lever Limit Switch designed for accurate mechanical position detection in industrial automation equipment. As part of the Omron WL Control Series, it uses an adjustable rod lever actuator for flexible alignment with cams and moving machine components. Its DPDT two-circuit contact configuration provides stable and repeatable switching for industrial control circuits. Screw terminal connections and a G½ conduit entry support secure field wiring. The WLCL-2N is suitable for applications using Omron Rod Lever Switches for machine position feedback. Related automation and control products can be explored through Omron Automation Control Products.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | WLCL-2N |
Omron WLCL-2N Adjustable Rod Lever Limit Switch – Technical Overview
| Specification | Value |
|---|---|
| Actuator | Adjustable Rod Lever |
| Lever Adjustment Range | 25 to 140 mm |
| Contact Form | DPDT |
| Contact Configuration | Two-Circuit |
| Rated Switching Capacity | 10 A at 500 VAC |
| Current Rating | 100 mA |
| Voltage Rating | 125 VAC / 30 VDC |
| Terminals | Screw Terminals (G½ conduit) |
| Pretravel (PT) | 20° max. |
| Degree of protection | IP67 |
The Omron WLCL-2N is widely recognized as an Omron adjustable rod lever limit switch developed for consistent and accurate position sensing in industrial automation systems. Its DPDT contact form supports reliable switching of multiple control circuits, making it suitable for complex electromechanical logic applications.
In industrial applications, the Omron WLCL-2N is commonly used in conveyors, material handling systems, machine tools, and automated production equipment. The adjustable rod lever allows precise setting of the actuation point, while the defined pretravel angle of 20° max. ensures predictable and repeatable switching when engaged by moving machine parts.
Designed for long-term operational reliability, the switch offers stable electrical characteristics and high mechanical endurance. With its IP67-rated enclosure, screw terminal wiring, and standardized mounting format, the Omron WLCL-2N supports dependable limit detection in demanding industrial environments.
