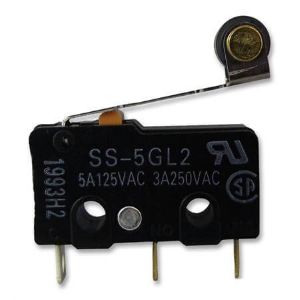

Omron SS-5GL2 Subminiature Basic Switch
The Omron SS-5GL2 is a Micro Limit Switch engineered for precise mechanical actuation in compact industrial control applications. Designed as a Subminiature Basic Switch, it features a hinge roller lever actuator with an SPDT contact form, supporting a rated 5 A at 125 VAC. The switch offers a low 0.49 N operating force for smooth actuation and an extended 30 million mechanical operations lifespan. Manufactured by Omron, the SS-5GL2 is part of the Omron Limit Switch, developed for reliable switching performance in space-constrained automation equipment.
| Brand | Omron |
| Product | Micro Limit Switch |
| Model Number | SS-5GL2 |
Omron SS-5GL2 Subminiature Basic Switch â Technical Overview
| Specification | Value |
|---|---|
| Actuator | Hinge roller lever |
| Contact Form | SPDT |
| Current Rating | 5 A |
| Voltage Rating | 125 VAC |
| Terminals | Solder terminals |
| Operating Force (OF) | 0.49 N {50 gf} |
| Mechanical Life | 30,000,000 cycles |
| Electrical Life | 200,000 cycles |
| Degree of protection | IEC IP40 |
The Omron SS-5GL2 is widely recognized as an Omron Subminiature Basic Switch designed for consistent and repeatable mechanical switching in industrial automation systems. With its SPDT contact configuration and 5 A current rating, the switch delivers stable electrical performance in control circuits requiring precise position detection.
In industrial applications, the Omron SS-5GL2 micro limit switch is commonly used in packaging machines, material handling equipment, machine tools, and safety interlock mechanisms. The hinge roller lever actuator enables smooth operation on cams and moving parts, while solder terminals provide secure electrical connections in compact assemblies.
Engineered for long-term reliability, the Omron SS Series platform combines high mechanical endurance with dependable electrical life characteristics. The SS-5GL2 supports continuous operation in controlled industrial environments, making it a preferred choice for engineers requiring compact size, accurate actuation, and dependable micro switch performance.
