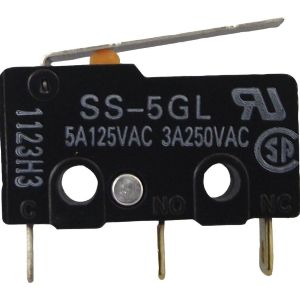

Omron SS-5GL Subminiature Basic Switch
Omron SS-5GL is a Subminiature Basic Switch designed for precise mechanical switching in compact industrial and electromechanical equipment. It belongs to the Omron SS Switch Series and features a hinge lever actuator, SPDT contact configuration, 5 A rating at 125 VAC, solder terminals, and a 1.47 N operating force. Its compact construction makes it suitable for equipment where installation space is limited. The SS-5GL supports applications requiring reliable Omron Compact Switching Solutions for mechanical actuation and control. Related switching and control components can be found under Omron Industrial Automation Products.
| Brand | Omron |
| Product | Micro Limit Switch |
| Model Number | SS-5GL |
Omron SS-5GL Hinge Lever SPDT Basic Switch â Technical Overview
| Specification | Value |
|---|---|
| Actuator | Hinge lever |
| Contact Form | SPDT |
| Current Rating | 5 A |
| Voltage Rating | 125 VAC |
| Terminals | Solder terminals |
| Operating Force (OF) | 1.47 N {150 gf} |
| Mechanical Life | 30,000,000 cycles |
| Electrical Life | 200,000 cycles |
| Degree of protection | IEC IP40 |
The Omron SS-5GL is widely recognized as an Omron subminiature basic switch designed for dependable mechanical switching in space-constrained industrial devices. With its SPDT contact form and 5 A current capacity, the switch delivers stable electrical performance for control and signal circuits requiring accurate contact transfer.
In industrial applications, the Omron SS-5GL basic switch is commonly used in automation equipment, control panels, vending machines, and precision electromechanical assemblies. The hinge lever actuator enables smooth and repeatable operation, while the low operating force supports high responsiveness in cam-driven and mechanically actuated systems.
Engineered for long service life, the SS-5GL offers a mechanical life of 30 million cycles and an electrical life of 200,000 cycles under rated conditions. With an IEC IP40 protection rating and stable contact performance, this subminiature basic switch is suitable for continuous operation in controlled industrial environments where reliability and compact design are essential.
