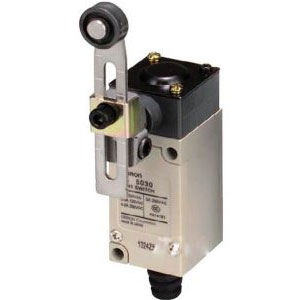

Omron HL-5030 Adjustable Roller Lever Limit Switch
The Omron HL-5030 is an Adjustable Roller Lever Limit Switch designed for reliable position detection in general industrial automation environments. Featuring a compact and rigid metal construction, this switch supports AC and DC control circuits up to 250 VAC / 250 VDC and delivers consistent mechanical switching performance. Its adjustable roller lever allows flexible mounting and smooth actuation from cams and moving machine parts. Manufactured by Omron, the HL-5030 belongs to the Omron Limit Switch, known for economical design, durability, and stable operation in light to medium-duty machinery.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | HL-5030 |
Omron HL-5030 Adjustable Roller Lever Limit Switch ā Technical Overview
| Specification | Value |
|---|---|
| Actuator | Adjustable roller lever |
| Current Rating | 5 A |
| Voltage Rating | 250 VAC / 250 VDC |
| Contact Configuration | 1NO + 1NC |
| Mechanical Life | 10,000,000 operations min. |
| Degree of protection | IP65 |
| Operating Speed | 5 mm/s to 0.5 m/s |
| Insulation Resistance | 100 MĪ© minimum (500 VDC) |
The Omron HL-5030 is widely recognized as an adjustable roller lever limit switch engineered for dependable mechanical position sensing in industrial automation systems. Its roller lever actuator provides smooth operation and a large overtravel margin, helping maintain stable switching even under repeated mechanical stress.
In industrial applications, the Omron HL-5030 limit switch is commonly used in printing machines, forming machines, conveyors, and light-duty automation equipment. The adjustable lever length enables precise alignment with cams, guides, and moving components, supporting accurate actuation and repeatable switching performance.
Designed for long-term operational reliability, the Omron HL-5030 offers high mechanical endurance, strong insulation characteristics, and resistance to vibration and shock. With IP65 protection and compliance with industrial electrical standards, this adjustable roller lever limit switch supports continuous operation in demanding industrial environments.
