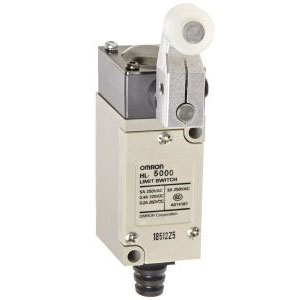

Omron HL-5000 Roller Lever Limit Switch
Omron HL-5000 is a general-purpose Roller Lever Limit Switch designed for mechanical position detection and motion monitoring in industrial machines. As part of the Omron HL Limit Switches, it combines a compact rigid metal housing with support for AC and DC control circuits up to 250 VAC / 250 VDC. IP65 protection, mechanical durability, and stable contact operation support repetitive switching applications. The HL-5000 is suited to machinery requiring dependable Omron Machine Control Switches for position and movement detection. Additional sensing and control components can be explored through Omron Automation Control Products.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | HL-5000 |
Omron HL-5000 General-Purpose Limit Switch ā Technical Overview
| Specification | Value |
|---|---|
| Actuator | Roller lever |
| Current Rating | 5 A |
| Voltage Rating | 250 VAC / 250 VDC |
| Contact Configuration | 1NO / 1NC |
| Mechanical Life | 10,000,000 operations min. |
| Degree of protection | IP65 |
| Operating Speed | 5 mm/s to 0.5 m/s |
| Insulation Resistance | 100 MĪ© minimum (500 VDC) |
The Omron HL-5000 is widely recognized as a robust roller lever limit switch designed for dependable mechanical position detection in industrial automation systems. Featuring a precise roller lever actuator and stable contact mechanism, it supports accurate switching under repeated mechanical stress and varying load conditions.
In industrial applications, the Omron HL-5000 limit switch is commonly used in conveyor systems, machine tools, material handling equipment, and packaging machinery. Its roller lever design allows smooth actuation from cams, guides, and moving machine parts, while the IP65-rated enclosure supports operation in dusty and humid environments.
Engineered for long-term reliability, the Omron HL-5000 offers high mechanical endurance, strong insulation characteristics, and resistance to vibration and shock. With compliance to industrial electrical standards and consistent contact performance, this roller lever limit switch remains a dependable choice for safety interlocking and position control in demanding industrial conditions.
