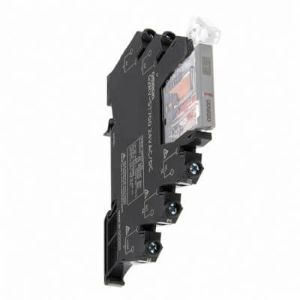

Omron G2RV-ST700 DC24 Slim I/O Relay

Omron G2RV-ST700 DC24 is a slim I/O relay designed for signal switching and load control in industrial automation panels. This Omron slim relay operates with a 24 VDC coil drawing approximately 13.5 mA and features SPDT contacts rated for 6 A at 250 VAC or 30 VDC with resistive loads. Screw terminals, DIN rail mounting, an integrated LED, and a mechanical operation indicator support control-panel wiring and status monitoring. The G2RV ST700 DC24 belongs to the G2RV range of Slim I/O Relay Modules used for PLC interfacing. Omron Industrial Control Components support machine control and electrical switching applications.

BrandOmron
Product TypeSolid-state Relay
Product NumberG2RV-ST700 DC24

Omron G2RV-ST700 DC24 Slim I/O Relay – Technical Overview

SpecificationValue
Relay TypeSlim I/O Relay
Contact FormSPDT (Single Pole Double Throw)
Rated Load250 VAC 6 A (resistive), 30 VDC 6 A (resistive)
Max Switching Power1500 VA (AC), 180 W (DC)
Coil Rating24 VDC, 13.5 mA
Mounting MethodDIN rail mounting
Operating Time20 ms max.
Reset Time40 ms max.
Terminal StructureScrew terminal

The Omron G2RV-ST700 DC24 slim I/O relay provides electromechanical switching for industrial control panels and PLC interface circuits. Its SPDT (Single Pole Double Throw) contact arrangement supports switching between normally open and normally closed contact paths. Rated for resistive loads of 6 A at 250 VAC or 30 VDC, it provides maximum specified switching capacities of 1,500 VA for AC and 180 W for DC. The Omron slim relay 24VDC configuration uses a 24 VDC coil with approximately 13.5 mA current consumption. Its maximum operating time is 20 ms, while the maximum release time is 40 ms. These characteristics make the G2RV ST700 suitable for control circuits requiring contact-based switching through a compact relay assembly.

Its slim housing and DIN rail mounting arrangement accommodate multiple switching channels within industrial control panels. Screw terminals provide connections for field wiring, while the integrated LED and mechanical operation indicator help identify relay status during operation. The model identifier G2RVST700DC24 is also used when searching for the G2RV-ST700 DC24 configuration. For applications requiring a PCB-mounted power relay with higher resistive AC contact capacity, the G2RL-1 DC24 offers a 24 VDC coil, SPDT contacts, and a specified 16 A switching rating at 250 VAC. The mounting arrangement and contact capacity distinguish these two models.

Industrial applications include PLC output interfacing, alarm circuits, machine control, and electrical panel switching. The Omron automation G2RV ST700 DC24 relay provides an electromechanical contact interface between compatible control signals and external load circuits. For applications requiring a plug-in slim relay with a separate DIN rail socket, the G2RV-1-S DC21 provides an SPDT configuration with a 6 A contact rating and a specified 21 VDC coil. Selecting between these Omron slim relay configurations requires checking coil voltage, contact ratings, terminal arrangement, and load characteristics. The G2RV-ST700 DC24 is intended for industrial control systems requiring 24 VDC coil operation and screw-terminal connections.
