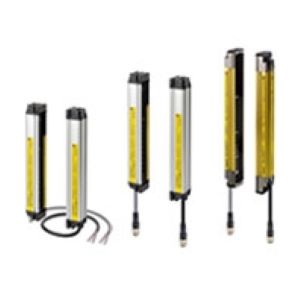

Omron F3SJ-B0625N25 Safety Light Curtain
Omron F3SJ-B0625N25 is designed for dependable hand protection across machine access areas where Type 4 safety protection is required. It belongs to the F3SJ-B Light Curtains and provides a 20 mm beam gap, 30 beams, and a 625 mm protective height for reliable intrusion detection. The device operates across a 0.2 to 7 m range and uses an infrared LED light source for consistent optical performance. Its NPN safety output supports integration with compatible safety controllers and PLC-based safety circuits. This model supports machine guarding applications using NPN Safety Light Curtains. Related industrial automation products can be explored through Omron Industrial Automation Products.
| Brand | Omron |
| Product | Safety Light Curtain |
| Model Number | F3SJ-B0625N25 |
Omron F3SJ-B0625N25 Safety Light Curtain - Technical Specifications
| Specification | Value |
|---|---|
| Sensor type | Type 4 |
| Application | Hand protection |
| Detection capability | Dia. 25 mm |
| Beam gap | 20 mm |
| Operating range | 0.2 to 7 m |
| Number of beams | 30 beams |
| Protective height | 625 mm |
| Output | NPN |
| Lens diameter | Diameter 5 mm |
| Startup waiting time | 2 s max |
| Power supply voltage | 24 VDC |
| Light source | Infrared LED (870 nm) |
| Connection type | Connector method (M12, 8-pin |
| Current Consumption | Emitter: 68 mA max.; Receiver: 52 mA max. |
| Degree of protection | IP65 (IEC 60529) |
Omron F3SJ-B0625N25 Safety Light Curtain is widely recognized as a compact Type 4 safety solution engineered for dependable operator protection in industrial automation systems. The device forms a precise protective field using multiple infrared beams, ensuring immediate interruption of machine operation when the detection zone is breached.
In industrial applications, this safety light curtain is commonly installed on presses, packaging machines, conveyor systems, and robotic work cells where wider access protection is required. Its NPN output configuration, startup waiting time of up to 2 seconds, and M12 8-pin connector method support smooth integration into safety control architectures.
Designed for continuous industrial operation, the unit operates on a 24 VDC power supply with controlled current consumption and stable optical output. With an IP65 protection rating and robust housing, it supports long-term use in demanding production environments where consistent hand protection and machine safety compliance are critical.
