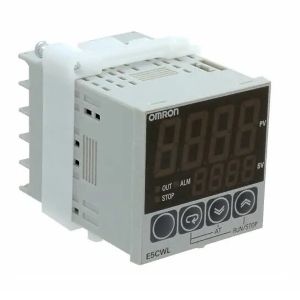

Omron E5CWL-R1TC Temperature Controller
The Omron E5CWL-R1TC is a compact Temperature Controller designed for precise thermal regulation in industrial automation applications. Built in a 1/16 DIN 48 × 48 mm format, this controller supports ON/OFF and 2-PID control with auto-tuning, enabling stable temperature control across varying process conditions. It accepts a wide range of thermocouple and Pt100 inputs and operates on a 100 to 240 VAC power supply. With a clear digital display and relay control output, it fits efficiently into compact control panels. Manufactured by Omron, the E5CWL-R1TC is part of the Omron Temperature Controllers, developed for reliable industrial temperature control.
| Brand | Omron |
| Product | Temperature Controller |
| Model Number | E5CWL-R1TC |
Omron E5CWL-R1TC Temperature Controller – Technical Overview
| Specification | Value |
|---|---|
| Controller Size | 1/16 DIN (48 × 48 × 60 mm) |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Voltage Range | 85% to 110% of rated voltage |
| Power Consumption | 3.5 VA |
| Control Method | ON/OFF or 2-PID control with auto-tuning |
| Input Types | Thermocouple (K, J, T, E, R, S, B, etc.), Pt100 / JPt100 |
| Input Points | 1 temperature input |
| Control Output | Relay output |
| Display Type | 7-segment digital display with status indicators |
| Degree of protection | Front panel IP50 |
The Omron E5CWL-R1TC is widely recognized as an Omron temperature controller engineered for accurate and stable temperature regulation in industrial environments. Its 1/16 DIN compact design allows easy integration into space-constrained control panels, while the 2-PID control algorithm with auto-tuning ensures consistent process stability and reduced temperature fluctuation.
In industrial applications, the Omron E5CWL-R1TC temperature controller is commonly used in heating systems, ovens, packaging machines, and process equipment requiring precise thermal control. The controller’s support for multiple thermocouple and RTD input types enables flexibility across different temperature sensing requirements, while the relay output provides dependable control of heaters and contactors.
Designed for long-term industrial operation, the E5CWL-R1TC operates reliably across a wide ambient temperature range and features strong insulation and dielectric strength. Its clear digital indication, stable power handling, and compact construction make it a dependable choice for continuous temperature monitoring and control in demanding automation conditions.
