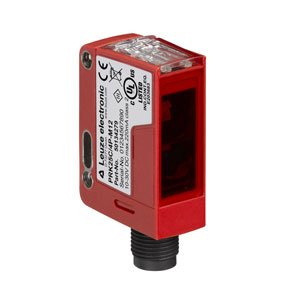

Leuze PRK25C/4P-M12 50134279 Retro-reflective Photoelectric Sensors

The Leuze PRK25C/4P-M12 is a high-accuracy Retro-reflective Photoelectric Sensor (Part No. 50134279) designed for reliable object detection, fast switching response, and stable signal performance. Manufactured by Leuze, this Retro-reflective Photoelectric Sensors component supports efficient monitoring of automated processes, ensuring consistent detection of moving and stationary components in industrial operations.

Datasheet

Brand	Leuze
Model Number	PRK25C/4P-M12

Leuze PRK25C/4P-M12 50134279 Retro-reflective Photoelectric Sensors - Technical Specifications

Specification	Value
Operating principle	Reflection principle
Operating voltage	0.05 ... 10 m (guaranteed operating range), With reflector TK(S) 100x100
Number of connections	1 Piece(s)
Type of connection	Connector
Thread size	M12
Type	Digital switching output
Material	PUR
No. of pins	4 -pin
Encoding	A-coded
Ambient temperature, operation	-40 ... 60 °C
Ambient temperature, storage	-40 ... 70 °C
Degree of protection	IP 67, IP 69K
Net weight	22 g
Light source	LED, Red
Wavelength	640 nm
Supply voltage	10 ... 30 V, DC, Incl. residual ripple
Residual ripple	0 ... 15 %, From UB
Open-circuit current	0 ... 20 mA
Number of digital switching outputs	2 Piece(s)
Switching element	Transistor, PNP
Switching principle	Light switching
Switching frequency	1,500 Hz
Response time	0.33 ms
Dimension (W x H x L)	15 mm x 42.7 mm x 30 mm
Housing material	Plastic
Plastic housing	ABS
Housing color	Red
Type of display	LED
