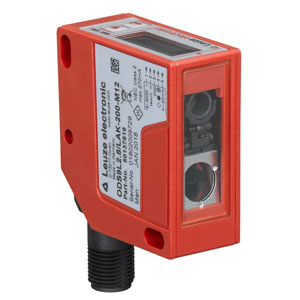

Leuze ODS9L2.8/LAK450-M12 50137818 Optical Dstance Sensors
The Leuze ODS9L2.8/LAK450-M12 is a high-precision Optical Distance Sensor (Part No. 50137818) designed for accurate distance measurement, fast response, and stable signal output. Manufactured by Leuze, this Optical Dstance Sensors component enables reliable monitoring of object positions and distances, supporting precise control and measurement in automated industrial operations.
| Brand | Leuze |
| Product | Optical Dstance Sensors |
| Model Number | ODS9L2.8/LAK450-M12 |
Leuze ODS9L2.8/LAK450-M12 50137818 Optical Dstance Sensors - Technical Specifications
| Specification | Value |
|---|---|
| Application | Fill-level monitoring, Length measurement in material cutting, Object measurement |
| Number of connections | 1 Piece(s) |
| Type of connection | Connector, Turning, 90° |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Ambient temperature, operation | -20 ... 50 °C |
| Ambient temperature, storage | -30 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 50 g |
| Beam path | Collimated |
| Light source | Laser, Red |
| Wavelength | 650 nm |
| Supply voltage | 18 ... 30 V, DC |
| Switching element | Transistor, Push-pull |
| Response time | 1 ms, Under constant ambient conditions, 90% diffuse reflection, standard measure mode |
| Dimension (W x H x L) | 21 mm x 50 mm x 50 mm |
| Housing material | Plastic |
| Housing color | Red |
| Type of display | LED, OLED display |
| Operational controls | Control buttons, PC software |
The Leuze ODS9L2.8/LAK450-M12 (Part No. 50137818) works by emitting a light beam toward a target and detecting the reflected signal to determine distance. Changes in the reflected light are converted into electrical signals, providing precise, repeatable measurements that allow machines to position, guide, or verify objects accurately in automated systems.
Industrial applications include robotic assembly, conveyor alignment, packaging inspection, automated quality control, and material handling systems. The ODS9L2.8/LAK450-M12 ensures accurate object positioning, distance measurement, and process control, helping maintain production efficiency and consistent quality in high-speed manufacturing operations.
Engineered for industrial environments, the ODS9L2.8/LAK450-M12 maintains reliable performance under vibration, dust, and continuous operation. Its robust housing and high-quality optical components ensure long-term stability, accurate signal transmission, and dependable operation in demanding factory conditions.
