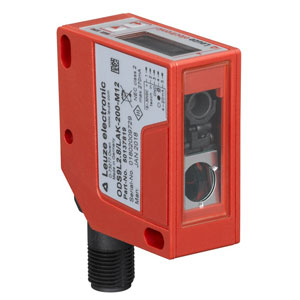

Leuze ODS9L2.8/LAK200-M12 50137819 Optical Dstance Sensors
The Leuze ODS9L2.8/LAK200-M12 is a high-precision Optical Distance Sensor (Part No. 50137819) engineered for accurate distance detection, rapid response, and stable signal output. Manufactured by Leuze, this Optical Dstance Sensors component enables reliable monitoring of object positions, supporting precise control and measurement in automated industrial processes.
| Brand | Leuze |
| Product | Optical Dstance Sensors |
| Model Number | ODS9L2.8/LAK200-M12 |
Leuze ODS9L2.8/LAK200-M12 50137819 Optical Dstance Sensors - Technical Specifications
| Specification | Value |
|---|---|
| Application | Fill-level monitoring, Length measurement in material cutting, Object measurement |
| Number of connections | 1 Piece(s) |
| Type of connection | Connector, Turning, 90° |
| Thread size | M12 |
| Type | Male |
| Material | Plastic |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Ambient temperature, operation | -20 ... 50 °C |
| Ambient temperature, storage | -30 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 50 g |
| Beam path | Collimated |
| Light source | LED, Red |
| Wavelength | 650 nm |
| Supply voltage | 18 ... 30 V, DC |
| Switching element | Transistor, Push-pull |
| Response time | 1 ms, Under constant ambient conditions, 90% diffuse reflection, standard measure mode |
| Dimension (W x H x L) | 21 mm x 50 mm x 50 mm |
| Housing material | Plastic |
| Housing color | Red |
| Type of display | LED, OLED display |
| Operational controls | Control buttons, PC software |
The Leuze ODS9L2.8/LAK200-M12 (Part No. 50137819) functions by projecting a light beam toward a target and detecting the reflected signal to calculate distance. Variations in reflected light intensity are converted into electrical signals, providing precise, repeatable distance measurements that allow machines to position, guide, or verify objects accurately.
Industrial applications include robotic assembly, conveyor alignment, packaging verification, automated inspection, and material handling systems. The ODS9L2.8/LAK200-M12 ensures accurate object placement, distance control, and process monitoring, improving production efficiency and maintaining quality standards in automated manufacturing.
Designed for challenging industrial environments, the ODS9L2.8/LAK200-M12 maintains consistent performance under vibration, dust, and continuous operation. Its durable housing and high-quality optical components provide long-term accuracy, stable signal integrity, and dependable operation in demanding factory conditions.
