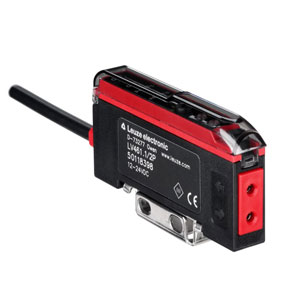

Leuze LV461.1/P2 50118398 Fiber Optic Sensors
The Leuze LV461.1/P2 is a high-precision Fiber Optic Sensor (Part No. 50118398) designed for accurate light transmission, compact installation, and dependable object detection. Manufactured by Leuze, this Fiber Optic Sensors component supports reliable sensing in automated equipment, enabling precise monitoring and control of industrial processes.
| Brand | Leuze |
| Product | Fiber Optic Sensors |
| Model Number | LV461.1/P2 |
Leuze LV461.1/P2 50118398 Fiber Optic Sensors - Technical Specifications
| Specification | Value |
|---|---|
| Operating voltage | 12 ... 24 V, DC |
| Type of connection | Cable |
| Type | Digital switching output |
| Design | Cubic |
| Number of conductors | 4 -wire |
| Cable length | 2,000 mm |
| Net weight | 69 g |
| Light source | LED, Red |
| Switching frequency | 500 Hz |
| Dimension (W x H x L) | 10 mm x 31 mm x 62 mm |
| Housing material | Plastic |
| Type of display | LED |
The Leuze LV461.1/P2 (Part No. 50118398) operates by transmitting light through optical fibers to a sensing point and detecting changes in the received signal when an object passes through the detection area. Variations in light intensity are converted into output signals, allowing accurate detection of small components and precise position monitoring in automated systems.
Industrial applications include electronics assembly lines, packaging machinery, pharmaceutical production equipment, semiconductor manufacturing, and automated handling systems. The LV461.1/P2 allows operators to detect parts, monitor process flows, and ensure accurate timing of automated operations in compact and confined spaces.
Engineered for factory environments, the LV461.1/P2 provides long-term reliability even under vibration, tight installation constraints, and continuous operation. Its fiber optic design protects sensitive electronics while maintaining consistent detection accuracy, supporting stable and efficient industrial performance.
