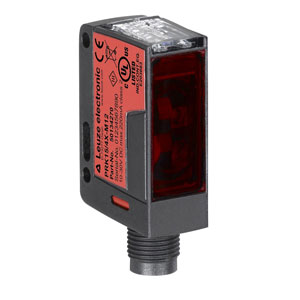

Leuze LS15/XX-M12 50138585 Throughbeam Photoelectric Sensors
The Leuze LS15/XX-M12 is a high-performance Throughbeam Photoelectric Sensor (Part No. 50138585) designed for accurate object detection, rapid switching, and consistent operation. Manufactured by Leuze, this Throughbeam Photoelectric Sensors component ensures dependable monitoring of production lines, supporting stable detection and seamless process control in automated industrial environments.
| Brand | Leuze |
| Product | Throughbeam Photoelectric Sensors |
| Model Number | LS15/XX-M12 |
Leuze LS15/XX-M12 50138585 Throughbeam Photoelectric Sensors - Technical Specifications
| Specification | Value |
|---|---|
| Operating principle | Throughbeam principle |
| Number of connections | 1 Piece(s) |
| Type of connection | Connector |
| Thread size | M12 |
| Material | Plastic |
| No. of pins | 4 -pin |
| Encoding | A-coded |
| Ambient temperature, operation | -40 ... 60 °C |
| Ambient temperature, storage | -40 ... 70 °C |
| Degree of protection | IP 67 |
| Net weight | 15 g |
| Operating range | 0 ... 25 m (guaranteed operating range) |
| Light source | LED, Red |
| Supply voltage | 10 ... 30 V, DC, Incl. residual ripple |
| Residual ripple | 0 ... 15 %, From UB |
| Open-circuit current | 0 ... 20 mA |
| Dimension (W x H x L) | 15 mm x 42.7 mm x 30 mm |
| Housing material | Plastic |
| Plastic housing | ABS |
| Housing color | Black |
| Type of display | LED |
The Leuze LS15/XX-M12 (Part No. 50138585) operates by emitting a continuous light beam from an emitter to a receiver. When an object passes through and interrupts the beam, the sensor generates an electrical signal for the control system. This through-beam principle provides highly reliable detection of objects regardless of color, surface texture, or transparency.
Industrial applications include conveyor belts, packaging systems, assembly lines, material handling stations, and robotic automation setups. The LS15/XX-M12 enables precise product tracking, automated sorting, and accurate process triggering, improving production efficiency and minimizing errors in fast-moving manufacturing operations.
Engineered for robust industrial performance, the LS15/XX-M12 withstands vibration, dust, and extended operating periods. Its secure M12 connection and durable housing maintain consistent sensor functionality, ensuring reliable detection and stable process control even in demanding factory environments.
