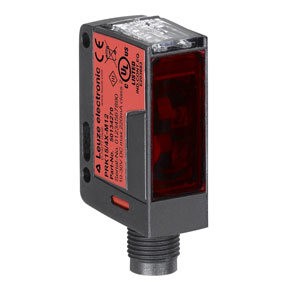

Leuze LE15/4X-M12 50138588 Throughbeam Photoelectric Sensors

The Leuze LE15/4X-M12 is a high-precision Throughbeam Photoelectric Sensor (Part No. 50138588) designed for accurate object detection, rapid switching response, and robust performance. Manufactured by Leuze, this Throughbeam Photoelectric Sensors component ensures reliable monitoring of production processes, supporting consistent detection and control in automated machinery.

BrandLeuze
Product TypeThroughbeam Photoelectric Sensors
Product NumberLE15/4X-M12
Part Number50138588

Leuze LE15/4X-M12 50138588 Throughbeam Photoelectric Sensors - Technical Specifications

SpecificationValue
Operating principleThroughbeam principle
Number of connections1 Piece(s)
Type of connectionConnector
Thread sizeM12
TypeDigital switching output
MaterialPlastic
No. of pins4 -pin
EncodingA-coded
Ambient temperature, operation-40 ... 60 °C
Ambient temperature, storage-40 ... 70 °C
Degree of protectionIP 67
Net weight15 g
Supply voltage10 ... 30 V, DC, Incl. residual ripple
Residual ripple0 ... 15 %, From UB
Open-circuit current0 ... 20 mA
Number of digital switching outputs1 Piece(s)
Switching elementTransistor, PNP
Switching principleLight switching
Switching frequency500 Hz
Response time1 ms
Dimension (W x H x L)15 mm x 42.7 mm x 30 mm
Housing materialPlastic
Plastic housingABS
Housing colorBlack
Type of displayLED

The Leuze LE15/4X-M12 (Part No. 50138588) operates by transmitting a light beam from an emitter to a receiver. When an object interrupts the beam, the sensor detects the change and sends an electrical signal to the control system. This principle allows precise detection of objects, parts, or materials, ensuring reliable operation in high-speed automation environments.

Industrial applications include conveyor systems, packaging lines, automated assembly stations, material handling equipment, and robotic operations. The LE15/4X-M12 helps monitor product flow, trigger process actions, and maintain accurate positioning of components, contributing to consistent production quality and reduced error rates.

Built for demanding factory conditions, the LE15/4X-M12 performs reliably under vibration, dust, and extended operating hours. Its durable construction and secure M12 connection provide long-term stability, maintaining consistent detection performance while minimizing downtime in industrial environments.
