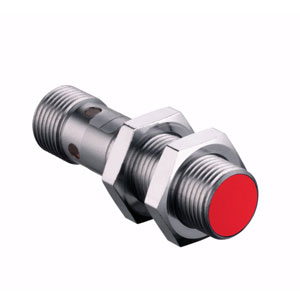

Leuze ISS 112MM/4NO-4E0-M12 50136032 Inductive Switches
The ISS 112MM/4NO-4E0-M12 is a high-precision Inductive Switch (Part No. 50136032) by Leuze, featuring fast switching response, extended detection range, and compact M12 housing. The Leuze Inductive Switches series ensures reliable metal detection and seamless integration into automated production lines and industrial control systems.
| Brand | Leuze |
| Product | Inductive Switches |
| Model Number | ISS 112MM/4NO-4E0-M12 |
Leuze ISS 112MM/4NO-4E0-M12 50136032 Inductive Switches - Technical Specifications
| Specification | Value |
|---|---|
| Design | Cylindrical |
| Thread Size | M12 |
| Dimension | 12 mm x 50 mm |
| Operating Range | 0 ... 3.24 mm |
| Supply Voltage | 10 ... 30 V, DC |
| Open-circuit current | 0 ... 10 mA |
| Switching hysteresis | 15 % |
| Digital Switching Outputs | 1 Piece(s) |
| Switching Frequency | 3,000 Hz |
| Connection Type | Connector |
| No. of Pin | 4 -pin |
| Housing Material | Metal |
| Sensing face material | Plastic, Polybutylene (PBT) |
| Operating Temperature | -25 ... 70 °C |
| Ambient Temperature, Storage | -25 ... 70 °C |
| Degree of Protection (IP Rating) | IP 67 |
| Type of display | LED |
| Switching current, max. | 200 mA |
| Switching element | Transistor, PNP |
| Switching principle | NO (normally open) |
| Material | Metal |
| Type | Male |
The ISS 112MM/4NO-4E0-M12 (Part No. 50136032) operates on inductive principles, detecting metallic objects without physical contact. Changes in the electromagnetic field caused by nearby metal targets are converted into electrical signals, allowing fast and accurate detection of both moving and stationary components in industrial automation setups.
Industrially, the ISS 112MM/4NO-4E0-M12 (Part No. 50136032) is used for position monitoring, part detection, and process control. Typical applications include conveyor systems, automated assembly lines, and packaging machinery, where reliable detection improves operational efficiency and ensures consistent product quality.
Engineered for demanding environments, the ISS 112MM/4NO-4E0-M12 (Part No. 50136032) features robust M12 housing, resistance to dust and vibration, and stable performance across temperature variations. Its durable construction guarantees long-term reliability in continuous production and harsh industrial conditions.
